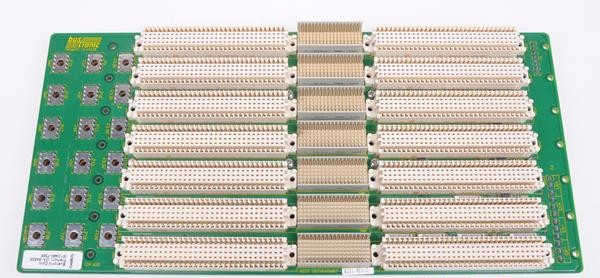

Bustronic 7-Slot VME64x Backplane

The Elma / Bustronic 101V64XM07-0221 is a 7-slot VME64x backplane engineered for robust and reliable performance in demanding applications. This backplane adheres to the VME64x standard, ensuring broad compatibility with a diverse range of VMEbus boards. Its construction prioritizes signal integrity and power distribution, making it suitable for industrial, embedded, and high-performance computing environments.

### Technical Specifications

* **Product Name:** Elma / Bustronic 101V64XM07-0221 7-Slot VME64x Backplane
* **Form Factor:** 7U
* **Slots:** 7
* **VME Standard Compliance:** Fully compliant with ANSI/VITA VME extension standard, ANSI/VITA 1.1-1997, and VITA 1.7 Increased Current Specification
* **Board Construction:**
* 10-layer board construction
* Five signal layers and five power and ground planes
* Full stripline design
* Generously distributed decoupling capacitors (high and low frequency)
* 2 oz. power and ground planes
* Three 2 oz. copper ground planes for shielding, EMI/RFI minimization, and crosstalk reduction
* Two 2 oz. copper VCC planes for maximized power distribution and noise reduction
* **Termination:** Onboard, inboard termination to reduce signal length and reflections
* **Daisy Chaining:**
* Automatic active BUSGRANT and IACK daisy chaining
* Utilizes surface mount components for daisy chaining
* **Mechanical:**
* 10 Pin Power Tap with 6/32 Screw power interface
* J1 Connectors: 160 Pin, 17 mm with Shrouds, all slots
* J2 Connectors: 160 Pin, 13 mm with Shrouds, all slots
* No J0 Connector
* Power insertion area located below signal slots above the bottom-mounting rail for maximum power potential
* Adequate numbers of power bugs to accommodate higher power than typical potential per slot
* Optional 8/32″ press-in power studs available
* **Power Distribution:**
* Distribution of +5V, +3.3V, +/-12V, +/-V1, +/-V2, and VPC
* Accommodates +/- V1 and V2 via a 12-pin friction lock header connector at the top of the backplane
* Accommodates system functions (+Ground, +5V, ACFAIL, SYSFAIL, SYSRESET, +3.3V, +12V, and -12V) via an 8-position utility connector

### Interfaces

* **J1 Connectors:** 160-pin VME extension connectors
* **J2 Connectors:** 160-pin VME extension connectors
* **Power Interface:** 10 Pin Power Tap with 6/32 Screw
* **Utility Connector:** 8-position for system functions
* **Auxiliary Voltages Connector:** 12-pin friction lock header for +/- V1, +/- V2

### Compatibility

* **VMEbus Standards:** Supports VME64x standard, ensuring compatibility with a wide range of VMEbus boards
* **VME Extension Standard:** Compliant with ANSI/VITA VME extension standard
* **Backward Compatibility:** Fully backwards compatible to the ANSI/VITA 1.1-1997 standard (VME320)

### Physical

* **Dimensions:** 7U height
* **Weight:** Ship Weight: 10 lbs /ea
