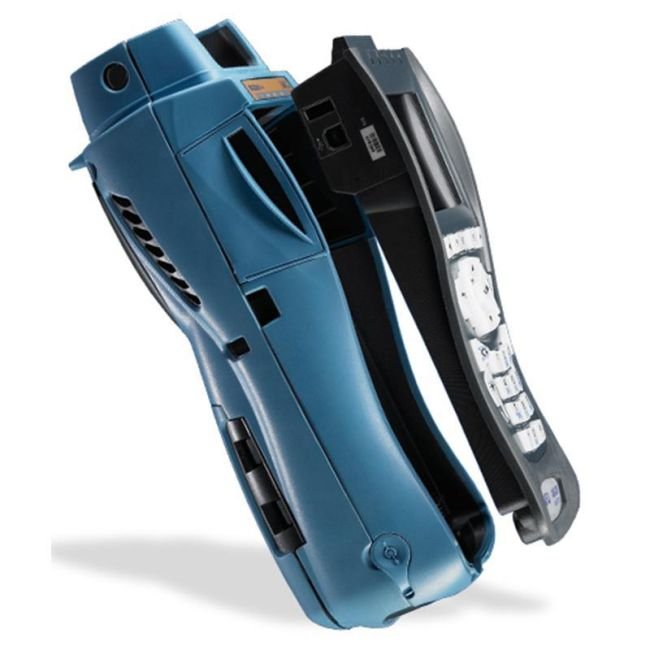

Exfo AXS-360 Fiber Certification Tester

The EXFO AXS-360 Fiber Certification Tester is a handheld optical instrument for certifying fiber optic cabling in telecommunications and data communications networks. It delivers automated testing across both singlemode and multimode fibers up to 10 Gbit/s without requiring module changes, ensuring installations meet TIA-568-B and ISO/IEC-11801 standards.

## Technical Specifications

The AXS-360 supports four wavelengths across two ports: 850 nm and 1300 nm for multimode fiber, plus 1310 nm and 1550 nm for singlemode. Singlemode configurations can include a third wavelength at either 1490 nm or 1625 nm on a single port. The instrument features controlled multimode launching conditions for accurate loss measurement and displays results in a tabular format with automated pass/fail status relative to user-definable thresholds.

Optional Visual Fault Locator (VFL) functionality is classified as CLASS 3R LASER PRODUCT per IEC 60825-1 and 21 CFR 1040.10, with laser radiation possible at the output port. The transflective color display ensures visibility across varying lighting conditions. Data export occurs via USB connection.

## Key Features

• Automated optical loss measurements at multiple wavelengths with step-by-step fiber loss wizard
• Fiber length verification against user-entered specifications
• Optional Fiber Inspection Probe (FIP) integration for connector cleanliness assessment
• Optional Visual Fault Locator for fiber break detection
• Modular design based on EXFO AXS-200 SharpTESTER platform
• Professional report generation via EXFO Optical Report Viewer software
• Supplied with FLS-600 Light Source as standard kit component

## Compatibility & Integration

The AXS-360 operates as a standalone unit or integrates with the FLS-600 Light Source for complete certification workflows. Connector adapters and lithium-ion battery power support field deployment. Standard accessories include USB cable, carrying case, shoulder strap, and AC adapter/charger.
