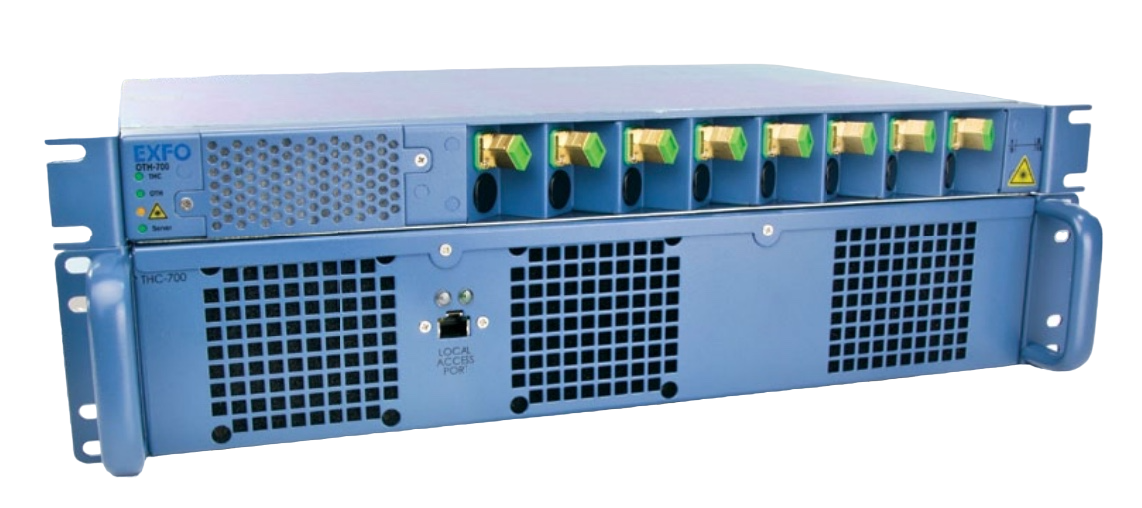

Exfo FG-720-023M 1310, 1550 OTDR

The EXFO FG-720-023M is a remote OTDR unit designed for field testing and continuous monitoring of fiber optic networks. Operating at 1310 nm and 1550 nm, it delivers dynamic range of 35 dB at 1310 nm and 38 dB at 1550 nm, enabling detection and localization of faults, splices, and reflective events across telecom, datacom, and CATV infrastructure. The unit supports multiple testing modes: unplanned manual tests with result download, on-demand testing with fault alerting, 24/7 monitoring of fault events only, and scheduled testing at predefined intervals. Real-time analysis and automatic event detection streamline field characterization workflows.

## Technical Specifications

• **Wavelengths:** 1310 nm, 1550 nm
• **Dynamic Range:** 35 dB (1310 nm), 38 dB (1550 nm)
• **Data Storage:** Up to 80 GB local capacity with RAID protection
• **Testing Modes:** Manual, on-demand, 24/7 monitoring, scheduled daily or weekly

## Key Features

• SMS alerting for fault occurrence and clearing events
• SMS-triggered on-demand testing capability
• Dry-contact relay output for subsystem fault indication
• LAN-accessible via local management port website for remote and local access
• 2U stand-alone form factor

## Typical Applications

• Metro network fiber characterization and troubleshooting
• Unattended long-term fault monitoring and event logging
• Scheduled preventive testing on telecom and datacom routes
• CATV network cable integrity verification

## Compatibility & Integration

• Integrates with NQMSfiber for centralized alarm management, reporting, and trouble-ticket workflows
• Compatible with EXFO Fiber Management System (FMS)
• Works with existing network management systems for unified operations
