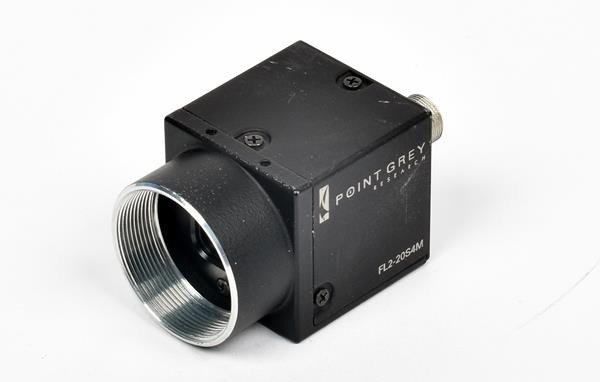

FLIR Systems / Point Grey Research FL2-20S4M Ultra-Compact Case-Enclosed IEEE-1394b Digital Camera

The FLIR Systems/Point Grey Research FL2-20S4M is an ultra-compact, case-enclosed digital camera built around a Sony ICX274 CCD sensor. This 2.0 MP monochrome imaging system delivers 1624 × 1224 pixel resolution at 15 FPS maximum frame rate, making it suitable for machine vision, scientific imaging, and industrial automation applications where space constraints and reliable performance are critical.

## Technical Specifications

• **Sensor:** Sony ICX274 CCD, 1/1.8″ format, progressive area scan
• **Resolution:** 1624 × 1224 pixels (2.0 MP)
• **Pixel Size:** 4.4 µm
• **Frame Rate:** 15 FPS maximum
• **A/D Converter:** 12-bit
• **Image Data Output:** 8, 12, 16, and 24-bit digital data
• **Shutter:** Global shutter
• **Exposure Range:** 0.02 ms to >10 seconds
• **Gain Range:** 0 dB to 24 dB
• **Power Requirements:** 8 to 30 V DC
• **Power Consumption:** <2.5 W maximum
• **Auxiliary Output:** 3.3 V, 150 mA maximum
• **Dimensions:** 29 mm × 29 mm × 30 mm
• **Mass:** 58 grams
• **Operating Temperature:** 0° to 45°C
• **Storage Temperature:** -30° to 60°C
• **Operating Humidity:** 20 to 80% (no condensation)

## Key Features

• IEEE 1394b digital interface with configurable transfer rates: 100, 200, 400, and 800 Mbit/s
• C-Mount lens compatibility
• Global shutter with multiple trigger modes: standard, bulb, skip frames, multi-exposure preset, overlapped, and multi-shot
• Flexible partial imaging: pixel binning and ROI (region of interest) capabilities
• Integrated image processing: gamma, lookup table, hue, saturation, and sharpness adjustments
• Three memory channels for custom camera settings storage
• Automatic synchronization for multiple cameras on the same 1394b bus
• GPIO connector (6-pin Hirose HR10A-7R-6PB) for trigger, strobe, and power signals
• Opto-isolated I/O (1 input, 1 output), non-isolated bi-directional I/O (2 ports), and serial port over non-isolated I/O
• Metal case enclosure for durability in demanding environments

## Typical Applications

Machine vision systems, scientific imaging, industrial automation, embedded vision solutions, and high-speed inspection requiring compact form factor and low power consumption.

## Compatibility & Integration

Compliant with IIDC v1.31 machine vision standard. Certifications include CE, FCC, KCC, and RoHS. Supported by National Instruments integration ecosystem.
