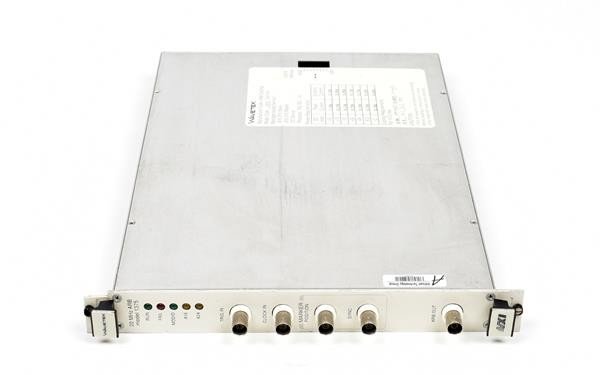

Fluke / Wavetek 1375 20 MHz Arbitrary Waveform Generator

The Fluke/Wavetek 1375 is a 20 MHz arbitrary waveform generator housed in a VXIbus C-size module, delivering custom signal generation with 32k horizontal memory and 12-bit vertical resolution. Built for precision test environments, this single-slot instrument generates standard waveforms and user-defined arbitrary signals with 1 mHz frequency resolution and 0.01% frequency accuracy across its 20 MSa/s sampling rate.

## Technical Specifications

**Signal Generation Performance**
• Maximum frequency: 20 MHz arbitrary waveform generation
• Sampling rate: 20 MSa/s per channel
• Waveform memory: 32,000 points (32k horizontal)
• Vertical resolution: 12-bit, 4096 points
• Frequency resolution: 1 mHz
• Frequency accuracy: 0.01%
• Output impedance: 50 Ohm

**Output Specifications**
• Maximum output voltage: 10 V
• Minimum output voltage: 707.106781186547 mV
• Output accuracy: 2.5089%

**Triggering & Synchronization**
• Six triggered modes: Burst, Continuous, Gate, and Trigger configurations
• Marker outputs available

## Key Features

• Standard waveform library: Sine, Square, Ramp, Triangle
• 64 KB A24 shared memory for program and data storage
• SCPI command set for remote instrument control
• Universal auto-sensing input power
• Compact 2 kg form factor
• VXIbus backplane integration

## Typical Applications

The 1375 serves analog signal simulation, component validation, transducer calibration, and circuit testing where arbitrary waveform flexibility and moderate bandwidth meet frequency resolution and output precision requirements.

## Compatibility & Integration

This C-size VXIbus module operates within VXI chassis environments and communicates via SCPI protocols. Installation includes VXI plug connector and play driver software. Universal input power with automatic sensing enables flexible system integration.
