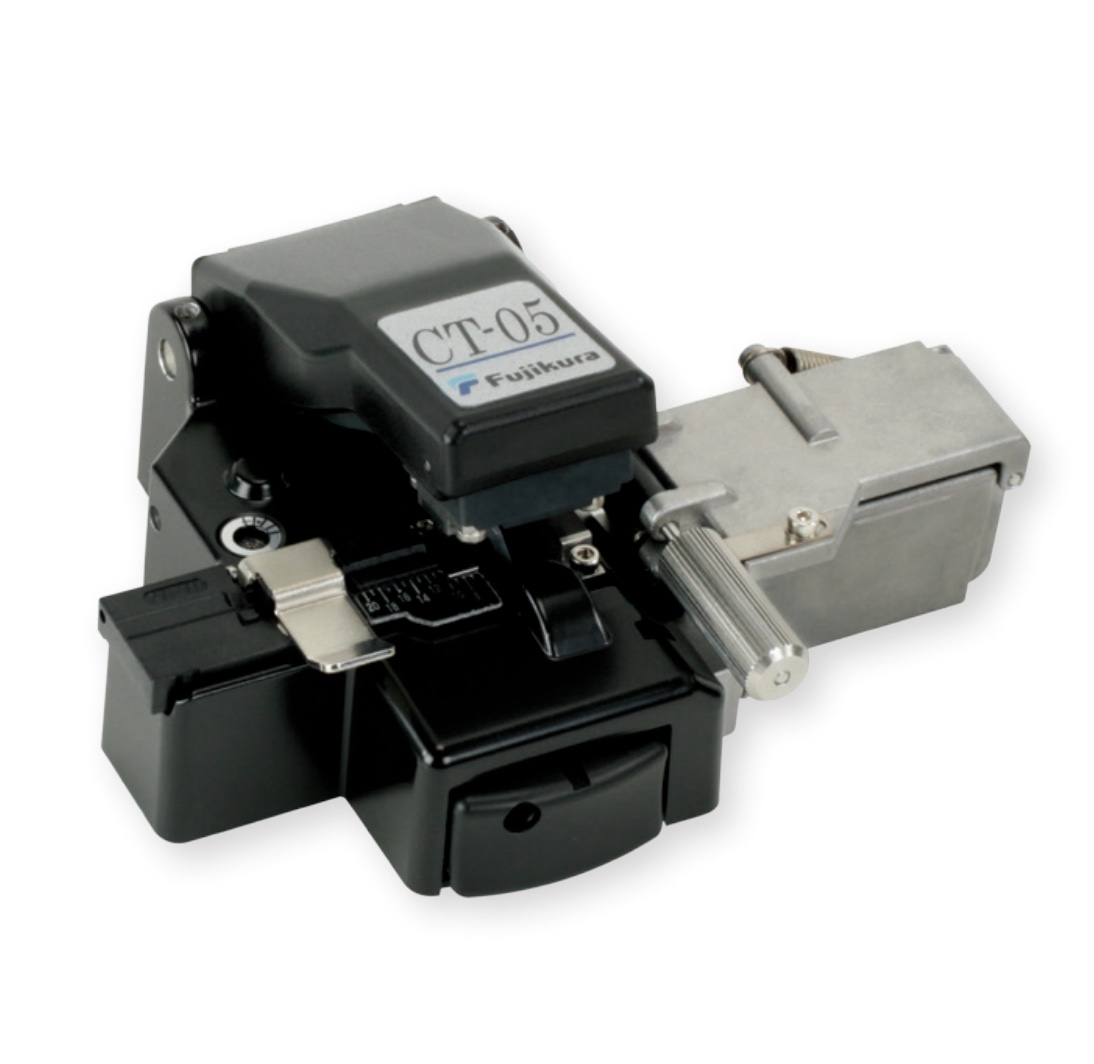

Fujikura CT-05 SM MM High Precision Single Fiber Cleaver

The Fujikura CT-05 is a high-precision single-fiber cleaver for both single-mode (SM) and multimode (MM) conventional silica optical fibers. This manual tool delivers clean, low-loss cleaves essential for fiber splicing, connector installation, and field termination work. The CT-05 combines cost-effective operation with cleave quality comparable to more expensive instruments, making it a practical choice for labs and field technicians preparing fibers for fusion splicing or mechanical connector assembly.

## Technical Specifications

• **Applicable Fiber Type**: Conventional silica optical fiber
• **Configuration**: Single fiber, 125 µm bare diameter
• **Coating Diameter Range**: 0.25 mm to 0.9 mm (250–900 µm)
• **Cleave Length**:
– Standard CT-05: 10 mm
– CT-05A with 250 µm coated fiber: 5 mm to 20 mm
– CT-05A with 900 µm coated fiber: 8 mm to 20 mm
– CT-05B: 16 mm (fixed length)
• **Cleave Angle**: ≤1.0° average (single-mode fiber)
• **Blade**: 16-position circular blade, rated to 48,000 cleaves
• **Operation**: Single-step manual with integrated scrap collection
• **Dimensions**: 113.5 mm × 82 mm × 42 mm
• **Weight**: 225 g

## Key Features

• Multi-position blade design extends service life through rotating cutting surfaces and adjustable height increments
• Replaceable CB-05 blade maintains performance across extended service cycles
• Compact, portable form factor (4.5″ × 3.2″ × 1.7″) suitable for field deployment
• No electrical power required—mechanical operation ensures reliability in any environment

## Typical Applications

• Field-installable connector preparation
• Mechanical splice assembly
• Fiber termination in laboratory and field settings
• Pre-splicing fiber conditioning for fusion splicing equipment

## Compatibility & Integration

The CT-05 accepts optional fiber plates (AD-10, AD-30B) and holders (FH-50-250, FH-50-900, FH-60-250, FH-60-900) for enhanced versatility. It integrates directly with Fujikura fusion splicer models FSM-60S, FSM-18S, and FSM-11S series, as well as third-party splicing equipment. Standard package includes carrying case CC-28, hexagonal wrench HEX-01, and instruction manual.
