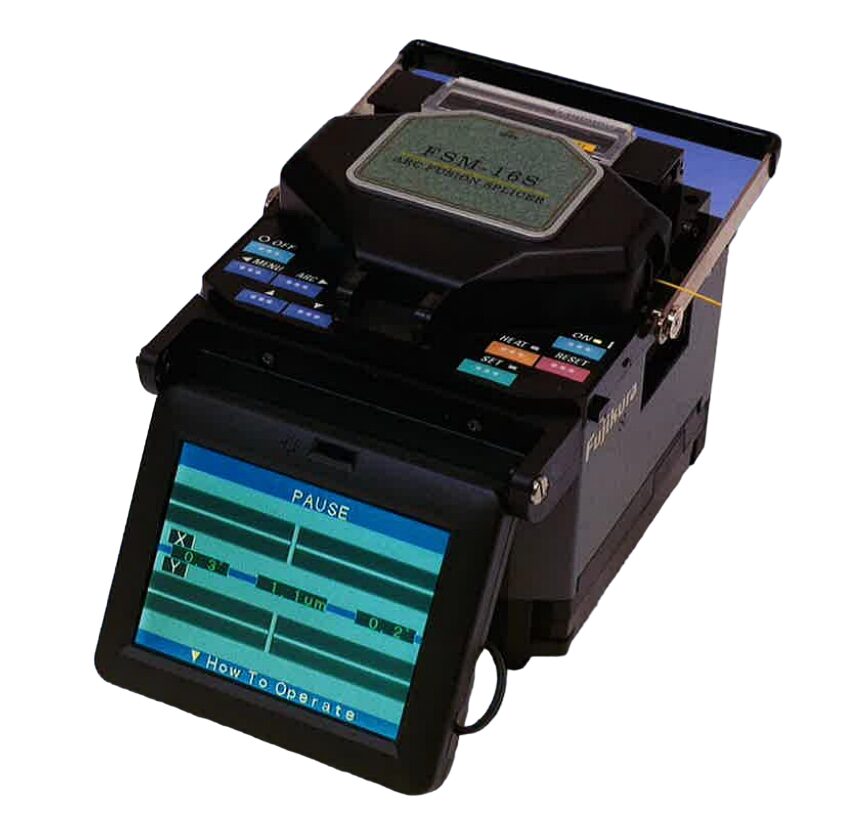

The Fujikura FSM-16S is a portable fusion splicer engineered for single-mode, multimode, dispersion-shifted, and NZ-DS optical fibers in field and installation environments. It delivers typical splice losses of 0.05 dB (SM), 0.02 dB (MM), and 0.08 dB (DS), with return loss exceeding 60 dB. The unit completes splices in approximately 25 seconds and stores data for the last 300 splicing events.
## Technical Specifications
• **Splice Loss (Typical):** 0.05 dB (SM), 0.02 dB (MM), 0.08 dB (DS)
• **Return Loss:** >60 dB
• **Splicing Time:** ~25 seconds
• **Splice Result Memory:** 300 records (loss, offset, error, cleave angle, arc conditions, comments)
• **Splicing Programs:** 30 (including 3 factory settings)
• **Magnification:** 110X with simultaneous X-Y view
• **Fiber Cleave Length:** 8 to 16 mm
• **Proof Test Force:** ~2 N (200 g)
• **Altitude Compensation:** Up to 3500 m
• **Arc Power Compensation:** Automatic by atmospheric pressure with calibration function
• **Splice Protector Compatibility:** 40 mm and 60 mm heat-shrinkable types
## Key Features
• Handles 250 µm and 900 µm coating diameters, including UV 250 µm variants
• 5-inch color anti-reflective LCD display for field visibility
• Wind protector maintains stable arc in cross winds up to 15 m/s (>30 mph)
• Battery pack (BTR-05): DC 12 V, 4500 mAh NiMH; ~40 splices per charge, ~30 with tube heater
• AC adapter (ADC-07): AC 100–240 V (50/60 Hz) input; typical charge time 2.5 hours
• Optional 12V 2.0 A·h camcorder battery compatible
• Compact footprint: 150 mm × 150 mm × 150 mm
• Weight: 2.8 kg (AC adapter), 3.0 kg (with battery)
## Typical Applications
Telecommunications networks, data center installations, field maintenance, and fiber optic cable terminations across SM and MM infrastructure.
## Compatibility & Integration
Modular power bay accepts BTR-05 battery pack or ADC-07 AC adapter. Stores complete splice diagnostics for troubleshooting and quality verification.
