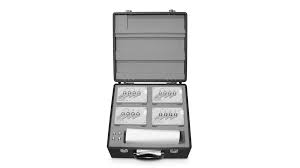

HP / Agilent 16380A Standard Air Capacitor Set (1pF to 1000pF)

The HP/Agilent 16380A Standard Air Capacitor Set is a four-component precision calibration standard for verifying LCR meters and impedance analyzers. It comprises discrete air-dielectric capacitors spanning 1 pF to 1000 pF—covering 1 pF, 10 pF, 100 pF, and 1000 pF nominal values. Each capacitor achieves ±0.1% nominal accuracy with ±0.01% calibration accuracy and exhibits exceptional long-term stability at less than 300 ppm/year. The dissipation factor remains below 0.0001, making these standards ideal for metrology labs, calibration departments, and manufacturing test environments requiring traceable, repeatable measurements.

– Technical Specifications

• Capacitance Range: 1 pF to 1000 pF in four discrete values
• Nominal Accuracy: ±0.1% across all capacitors
• Calibration Accuracy: ±0.01%
• Capacitance Stability: Less than 300 ppm/year
• Dissipation Factor: Less than 0.0001
• Voltage Rating: ±40 V AC/DC; 500 V
• Dielectric: Air
• Connector: BNC
• Set Dimensions: 142(W) × 88(H) × 112(D) mm
• Set Weight: 8.0 kg with case

– Key Features

• Four-terminal pair configuration for direct connection to compatible test instruments
• Adaptable to two-, three-, and five-terminal configurations using provided test leads and BNC adapters
• Minimal temperature sensitivity; operates reliably within 23°C ± 5°C and 50% ± 20% RH
• Frequency-independent performance documented at 1 kHz with deviations recorded above this threshold
• Individual capacitors sized proportionally to their nominal values for ergonomic laboratory use

– Typical Applications

• Calibration and performance verification of four-terminal pair LCR meters
• Impedance analyzer validation and traceability
• Metrology and standards laboratory work
• Manufacturing test acceptance procedures

– Compatibility & Integration

Direct four-terminal pair compatibility with Agilent/Keysight 4263B, 4268A, 4279A, 4284A, 4285A, 4288A, 4294A, E4980A, and E4981A. Also supports earlier HP models 4261A, 4262A, and 4271B. Recommended calibration interval: once annually.
