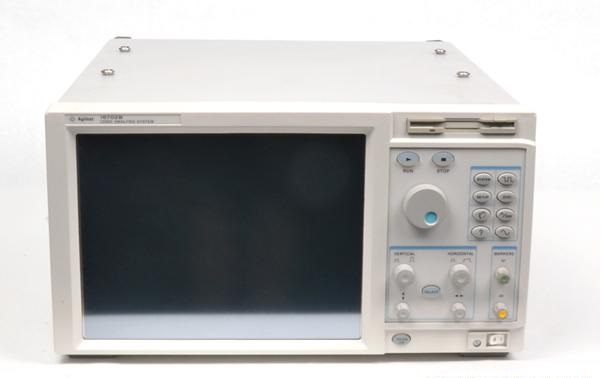

HP / Agilent 16702B Logic Analysis System

The HP/Agilent 16702B Logic Analysis System is a modular, high-performance instrument for digital system debugging, validation, and signal integrity analysis. It combines a large integrated 12.1-inch color touch screen display with front panel knobs and dedicated hot keys for intuitive operation and rapid access to analysis functions. The system’s flexible architecture accommodates five measurement module slots plus one emulation or Multiframe module slot, enabling engineers to configure capabilities precisely for their application and expand as requirements evolve.

– Technical Specifications

• Display: 12.1-inch color touch screen, 800 × 600 pixel resolution (Option 003: 1600 × 1200)
• Measurement Capacity: 5 measurement module slots; 1 emulation/Multiframe module slot
• State Clock Speed: Up to 1.5 Gb/s, 600 MHz, 400 MHz
• Timing Analysis: High-speed timing zoom to 4 GHz; timing zoom to 2 GHz; maximum timing sampling 800 MHz (half channel) / 400 MHz (full channel); timing speed to 1.2 GHz; 667 MHz capability with 16716A logic card
• Memory Depth: Up to 128 M samples; 128 M in half-channel 1.25 Gb/s and 0.5 Gb/s modes; state/timing analysis 1M–2M samples per module; 32M/16M (half/full channels); 16 M depth; 512 kbyte per channel with 16716A card
• Channel Capacity: Up to 1,020 channels of simultaneous state/timing analysis
• Probing: Differential and single-ended signal acquisition; soft touch probes with high-density, low loading, and differential capability

– Key Features

• Simultaneous state and timing acquisition through the same probe
• Inverse assembly of captured binary data into processor mnemonics
• Multiple display formats: binary, hex, decimal, octal, two’s complement, ASCII, or symbols
• Time-correlation of logic analyzer trace to external oscilloscopes
• Automated de-skew and tracking of markers
• 18 GB disk storage

– Typical Applications

Digital circuit and system design, testing, and debugging; processor trace analysis; signal integrity validation; board bring-up and characterization.

– Compatibility & Integration

Supports multiple measurement modules, pattern generators, and oscilloscopes. Expandable via 16701B Expansion Frame for additional slots.
