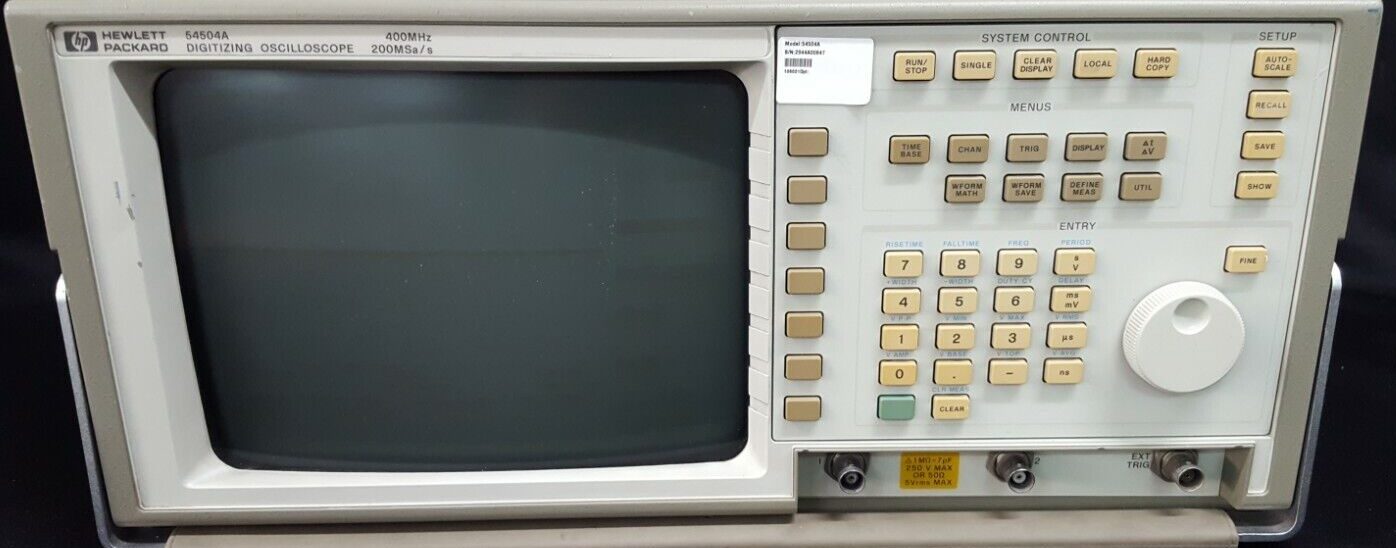

HP / Agilent 54504A 400 MHz digitizing oscilloscope, 2 ch.

The HP/Agilent 54504A is a 400 MHz, 2-channel digitizing oscilloscope engineered for electronic test and measurement applications requiring high-speed waveform acquisition and analysis. Dual 200 MSa/s digitizers deliver 400 MHz bandwidth in repetitive mode and 50 MHz single-shot bandwidth, with advanced triggering, automatic waveform measurements, and dual timebase windowing. Full HP-IB programmability enables seamless integration into automated test systems.

## Technical Specifications

• **Bandwidth:** 400 MHz (repetitive), 50 MHz (single-shot)
• **Channels:** 2
• **Sample Rate:** 200 MSa/s
• **A/D Resolution:** 8-bit
• **Vertical Sensitivity:** 1 mV to 5 V/div (1-2-5 sequence)
• **Input Impedance:** 1 MΩ or 50 Ω, switchable
• **Time Base:** 1 ns/div to 5 s/div (1-2-5 sequence); dual timebase windowing
• **Triggering:** Advanced logic, TV, ECL/TTL presets; 14.0 ns minimum internal pulse width, 2.8 ns external
• **External Trigger Input:** 1 MΩ or 50 Ω switchable impedance
• **Memory:** 4 nonvolatile setup memories, 4 nonvolatile waveform memories, 2 volatile pixel memories
• **Display:** CRT
• **Power:** 115/230 VAC, 48–66 Hz, 200 W maximum
• **Operating Temperature:** Valid ±10 °C from calibration temperature; 2.5 MHz/°C bandwidth reduction above +35 °C; 0.08%/°C vertical gain drift
• **Dimensions:** 194.3 mm H × 422.3 mm W × 355.6 mm D
• **Weight:** 10 kg net, 20 kg shipping

## Key Features

• Automatic waveform parameter and pulse measurements
• Automatic limit testing
• Pre-trigger display capability
• Pushbutton hardcopy output
• Four nonvolatile setups and waveform storage

## Typical Applications

Designed for repetitive signal analysis, single-shot transient capture, and automated test environments requiring high sampling rates and flexible trigger configurations.

## Compatibility & Integration

Full HP-IB programmability facilitates integration into ATE systems. Supplied with two HP 10430A 10:1 10 MΩ probes. Optional rackmount kit and alternative probe configurations available.
