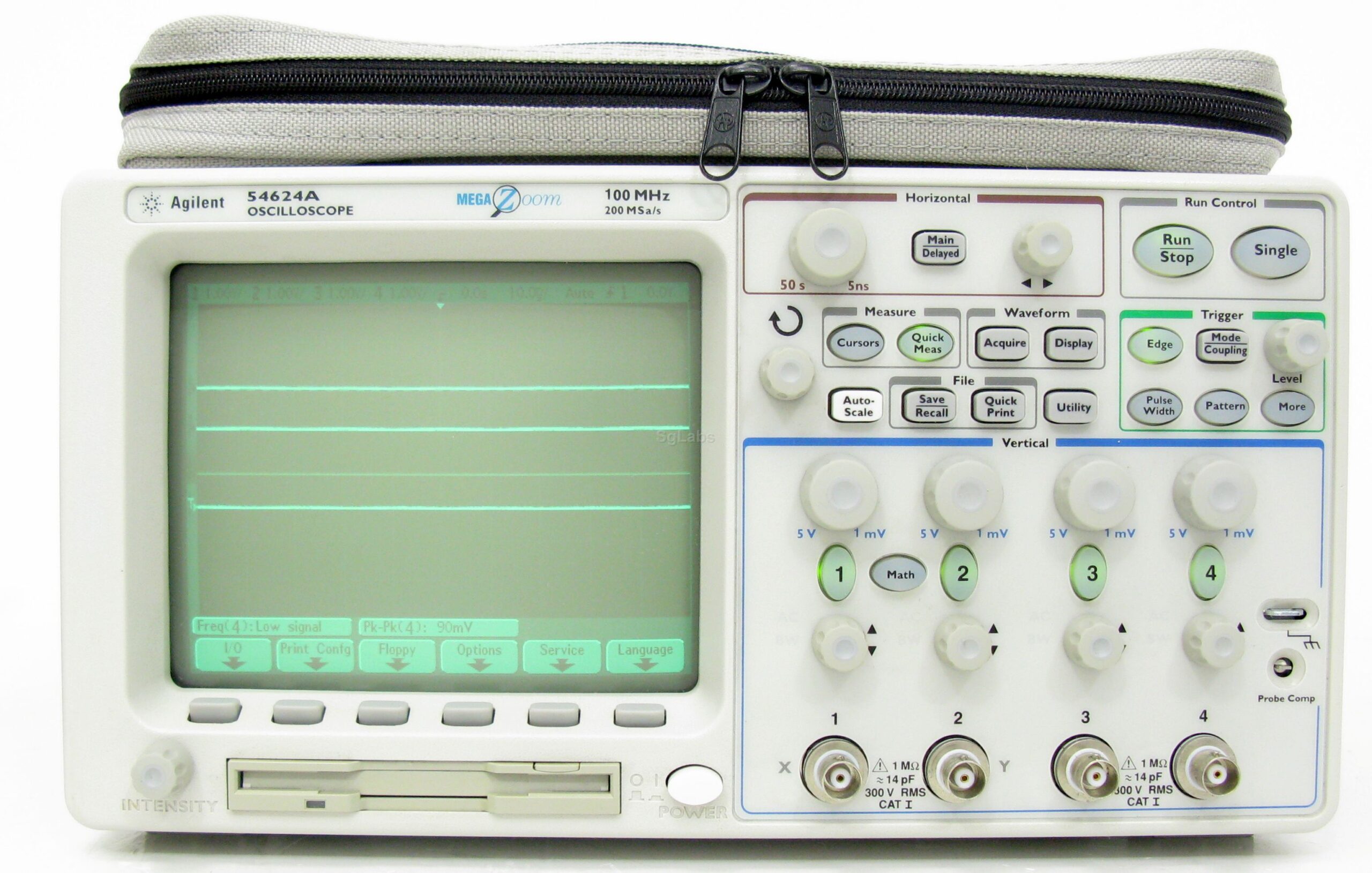

HP / Agilent 54624A 4-Channel, 100 MHz Oscilloscope

The Agilent 54624A is a 4-channel, 100 MHz oscilloscope engineered for mixed-signal analysis in electronic testing and debugging. It combines analog and digital signal acquisition with deep memory capture, advanced triggering on serial protocols, and waveform mathematics to isolate complex fault conditions and transient events. The instrument delivers 200 MS/s sampling at up to 8 MB memory per channel, enabling long-duration captures without sample rate compromise.

## Technical Specifications

• **Channels:** 4 analog
• **Bandwidth:** 100 MHz
• **Maximum Sample Rate:** 200 MS/s
• **Memory:** Up to 8 MB per channel (MegaZoom deep memory, always available)
• **Display:** High-definition with 32 intensity levels and 5-ns peak detect capability
• **Frequency Counter:** Integrated 5-digit measurement
• **Power Requirements:** 120 V / 220 V, 50 Hz / 60 Hz
• **Operating Temperature:** -10 °C to +55 °C
• **Storage Temperature:** -51 °C to +71 °C
• **Weight:** 16.8 lb (7.62 kg)

## Key Features

• **MegaZoom Deep Memory:** Capture non-repeating signals at full sample rate with instant zoom into regions of interest.
• **Serial Protocol Triggering:** Synchronization on I2C, CAN, LIN, USB, and SPI frame boundaries.
• **Waveform Math:** Subtraction, multiplication, integration, differentiation, and FFT analysis.
• **Data Storage:** 1.44 MB floppy drive stores waveforms as TIF/BMP images or ASCII data.
• **PC Connectivity:** RS-232 and parallel interfaces with optional GPIB module for accelerated transfers. IntuiLink software enables direct PC integration.

## Typical Applications

Mixed-signal design verification, embedded system debugging, protocol-level signal analysis, transient capture and fault isolation.

## Compatibility & Integration

I2C, CAN, LIN, USB, and SPI protocol support. Data export via RS-232, parallel, or optional GPIB. Waveform archival and import compatible with standard PC applications.
