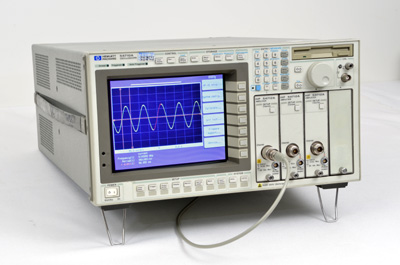

HP / Agilent 54720D 4 channel 8 GSa/s Real-time Modular Oscilloscope Mainframe

The HP/Agilent 54720D is a 4-channel real-time modular oscilloscope mainframe delivering up to 8 GSa/s sampling in single-channel mode. This plug-in architecture supports flexible multi-channel configurations, scaling from 1 channel at 8 GSa/s down to 8 channels at 2 GSa/s. With 2.0 GHz system bandwidth, 8-bit ADC resolution, and up to 65,536 points of acquisition memory per slot (256K with four-wide modules), the 54720D addresses high-speed digital and RF signal capture across research, design validation, and production test environments.

## Technical Specifications

**Sampling & Channels**
• Real-time sampling up to 8 GSa/s (single channel)
• Multi-channel: 2 ch @ 4 GSa/s, 4 ch @ 2 GSa/s, up to 8 ch @ 2 GSa/s
• 8-bit ADC resolution
• 65,536 points per slot; 256K points with four-wide modules

**Bandwidth & Frequency Performance**
• System bandwidth: 2.0 GHz
• Analog bandwidth (single-shot): 2 GHz
• Plug-in bandwidth: up to 1.5 GHz (module-dependent)
• Active probing: 2.5 GHz, 0.6 pF

**Timebase**
• Scale: 100 ps/div to 20 s/div (1-2-5 and fine steps)
• Window scale: 1 ps/div to main timebase
• Timebase accuracy: 0.003% T
• Pre- and post-trigger ranges: 0 to 10 s or one full-screen width

**Timing Accuracy**
• Real-time: ±25 ps
• Equivalent-time: ±(30 ps + 0.007% of delta-time marker reading) at 16 averages
• Time-interval accuracy (equivalent): 30 ps

**Triggering Capabilities**
• Edge, glitch (3 ns ±1 ns, captures to 500 ps), pattern, time-qualified, state, event-delayed, and time-delayed modes
• Trigger sources: all four input slots
• Glitch holdoff: 60 ns to 320 ms
• Time-qualified and time-delayed: 20 ns to 160 ms
• Event-delayed: up to 16,000,000 occurrences; max edge rate 70 MHz
• Trigger interpolator: 1 ps resolution

**Display**
• Color CRT
• Update rate: 550 Kpixels/s typical

## Key Features

• Modular slot architecture for tailored configurations
• Sub-nanosecond timing accuracy and 1 ps trigger interpolation
• Multi-mode triggering: pattern, state, glitch, and time-qualified
• Flexible memory allocation (64K–256K points)
• High-speed active probe support to 2.5 GHz

## Typical Applications

• High-speed digital circuit characterization
• RF and microwave signal analysis
• Protocol and timing validation
• Glitch detection in logic designs
• Real-time and equivalent-time waveform capture
