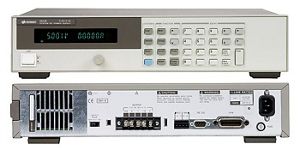

HP / Agilent 6634A DC power supply, 0-100 Vdc, 0-1 A

The HP/Agilent 6634A is a 100 W single-output DC power supply engineered for systems and production test applications. It delivers 0–100 Vdc at 0–1 A with series-pass regulation, supporting both Constant Voltage (CV) and Constant Current (CC) modes. The unit sources and sinks current, enabling rapid output down-programming and improved test throughput. Built-in digital voltmeter and precision current shunt provide real-time output monitoring. HP-IB (IEEE 488) interface enables full remote programmability, status reporting, and user-defined fault condition monitoring.

## Technical Specifications

• **Output Power:** 100 W
• **Voltage Range:** 0–100 Vdc
• **Current Range:** 0–1 A
• **Regulation Type:** Series-pass
• **Operating Modes:** Constant Voltage (CV), Constant Current (CC)
• **Load Effect (Typical):** Voltage: 0.07% + 70 mV; Current: 0.15% + 2 mA
• **Line Regulation (Typical):** Voltage: 0.07% + 15 mV; Current: 0.18% + 9 mA
• **Output Programming Response:** Rise/fall time < 15 ms (400 µs in Fast Mode); settling time < 60 ms (2 ms in Fast Mode)
• **DC Output Isolation:** ±240 Vdc maximum from chassis ground
• **Remote Sensing:** Compensates for load lead IR drops up to 2 V per lead
• **Input Power:** 350 VA maximum
• **AC Input Options:** 100, 120, 220, or 240 Vac; fusing: 4 A (100/120 Vac), 2 A (220/240 Vac)

## Key Features

• Bidirectional output—sources and sinks current for efficient down-programming
• Programmable overvoltage protection with SCR crowbar
• Programmable overcurrent protection via front panel or HP-IB
• Built-in digital voltmeter and current measurement capability
• Remote sensing for precision voltage regulation at the load
• Multi-voltage AC input configuration

## Typical Applications

• Production test systems requiring programmable power
• Device characterization and burn-in testing
• Load simulation with rapid transient response
• Automated test equipment (ATE) integration

## Compatibility & Integration

HP-IB (IEEE 488) interface provides complete instrument control, enabling integration into automated test systems and remote operation with full status and fault reporting.
