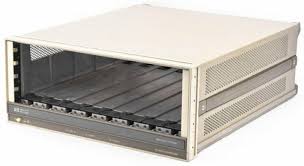

HP / Agilent 70001A System Mainframe

The HP/Agilent 70001A System Mainframe is a rack-mountable platform that houses and powers multiple HP/Agilent measurement modules, creating customizable test and measurement systems for laboratory, research, and industrial applications. It provides centralized system control, stable regulated power distribution, and high-speed data transfer between the mainframe and installed plug-in modules through a proprietary bus architecture.

– Technical Specifications

Electrical
• Input Power: 100-240 VAC, 47-63 Hz
• Output: Regulated DC voltages supplied to module bays (voltage levels determined by internal power supply design)
• Power Consumption: Varies based on installed modules

Interfaces
• Module Interface: Proprietary bus architecture for high-speed data transfer and control signal communication
• HP-IB (IEEE-488): Remote control, programming, and data transfer with external controllers
• Option-dependent interfaces available for specialized connectivity

Physical
• Form Factor: Rack-mountable
• Dimensions: Standard rack unit dimensions
• Weight: Varies with installed modules

– Key Features

• Configurable module bays accommodate multiple plug-in modules for tailored system configurations
• Integrated power supply delivers stable regulated power to all installed modules
• Central control point for system management and data retrieval
• Proprietary module interface enables high-speed communication and control signal transmission
• Standard IEEE-488 connectivity for remote programming and external system integration

– Typical Applications

• Multi-function test system integration in R&D laboratories
• Industrial measurement and signal processing
• Research-grade data acquisition platforms
• Customized measurement solutions requiring modular architecture

– Compatibility & Integration

Fully compatible with HP/Agilent 70000 Series plug-in modules, including spectrum analyzer modules, oscilloscope modules, signal generator modules, digital multimeter modules, and specialized measurement and signal processing modules. This compatibility enables construction of application-specific test systems through modular component selection.
