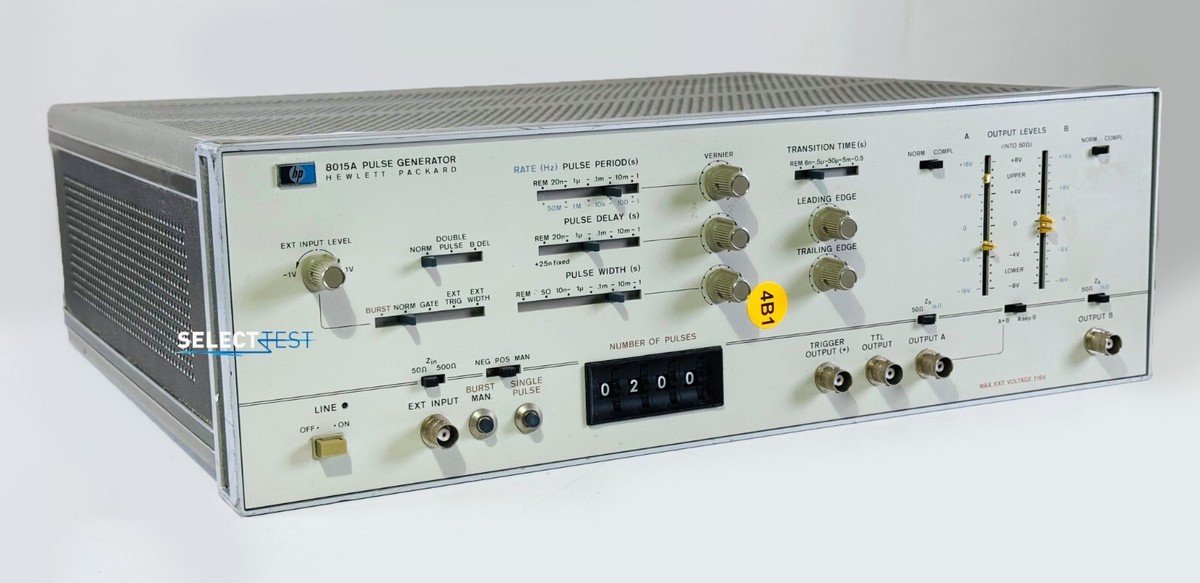

HP / Agilent 8015A 50 MHZ DUAL-OUTPUT PULSE GENERATOR

The HP/Agilent 8015A is a dual-output pulse generator delivering precise pulse generation from 1 Hz to 50 MHz. This instrument provides independent control over two output channels with selectable amplitude up to 16 V per channel, or 30 V when outputs are combined in A + B mode. Engineers use it to generate complex pulse patterns, simulate digital signals, and execute sophisticated timing applications across research, design validation, and component testing.

## Technical Specifications

**Timing Performance**
• Repetition rate: 1 Hz to 50 MHz (square wave and double pulse to 25 MHz; A + B mode to 40 MHz; B delay to 20 MHz)
• Pulse width: <10 ns to 1 s across four ranges; square wave width from 10 ns to 1 s
• Pulse delay: 20 ns to 1 s with 25 ns fixed offset; interchannel and double pulse delay selectable
• Width jitter: <0.1% + 50 ps
• Delay jitter: 30 ns): maximum 5% deviation from straight line between 10% and 90% points
• Overshoot/ringing: ±5% of pulse amplitude
• Preshoot: <5% of pulse amplitude
• Pulse droop: <5% of pulse amplitude

## Key Features

• Five trigger modes: NORM (internal), GATE, EXT, TRIG, and EXT WIDTH
• External trigger input impedance: 50 Ω or 500 Ω selectable with variable threshold (±1 V at 50 Ω; ±10 V at 500 Ω)
• Selectable trigger slope (positive or negative)
• B delay mode for generating 3-level waveforms and complex pulse sequences
• Double pulse mode with interchannel delay control

## Typical Applications

• Digital signal simulation and validation
• Timing and synchronization testing
• Component characterization requiring dual-phase stimulus
• Complex waveform generation for device qualification

## Compatibility & Integration

Dual output architecture supports both series and independent operation. Selectable output impedance and threshold levels enable direct interfacing with TTL logic and 50 Ω systems.
