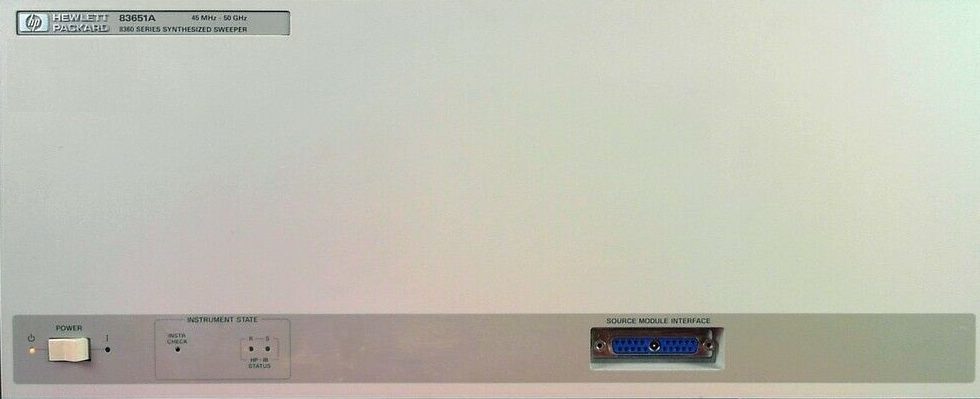

The HP/Agilent 83651A is a synthesized sweeper that generates RF signals from 45 MHz to 50 GHz with 1 Hz frequency resolution. This instrument serves as a dedicated source for Agilent 8510 systems, delivering precise signal generation for microwave component and subsystem characterization. Frequency accuracy in CW mode tracks the internal time base; in swept mode, accuracy reaches 0.1% of sweep width plus time base error for frequencies up to 26.5 GHz and sweep widths to n × 10 MHz. The rear-panel RF output provides 10 dBm maximum power.
– Technical Specifications
• Frequency Range: 45 MHz to 50 GHz
• Frequency Resolution: 1 Hz
• Maximum Output Power: 10 dBm
• CW Mode Accuracy: Same as time base
• Swept Mode Accuracy (≤26.5 GHz): 0.1% of sweep width ± time base accuracy for sweep widths ≤ n × 10 MHz
• Rear Panel RF Output: Standard configuration
• Dimensions: 24 × 20 × 16 inches
• Weight: 50 lbs
– Key Features
• Synthesized signal generation with sweep capability
• 1 Hz frequency resolution across full 45 MHz–50 GHz range
• CW and swept operating modes
• No front panel keyboard or display—designed for system integration
• Optional step attenuator (001), passive directional leveling coupler (H53), and rack mounting kits available
– Typical Applications
• Microwave component testing and characterization
• RF/microwave system measurements
• Network analyzer source functionality within Agilent 8510 systems
– Compatibility & Integration
The 83651A is optimized as a dedicated source for Agilent 8510 systems. Rack mounting options include slide kits (806), flange kits with handles (913), and flange kits without handles (908). Military standard calibration certifications (45662A) with or without test data are available. Commercial calibration with test results data is also offered.
