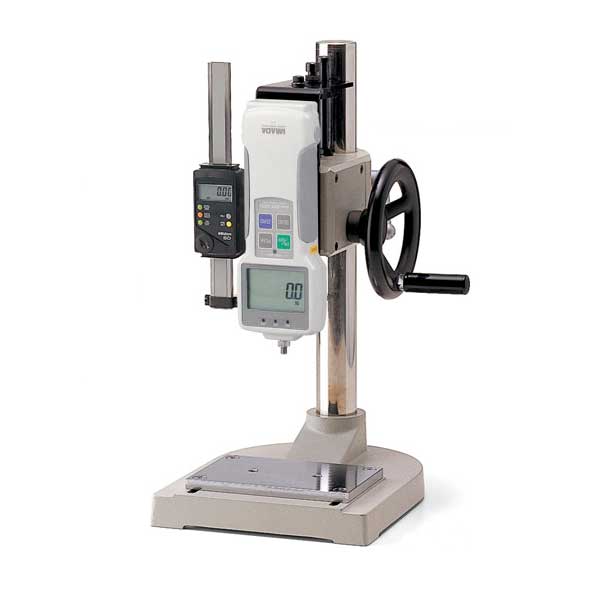

The Imada SV-2 is a manual force testing stand engineered for precision tension and compression measurements up to 500 N. Hand wheel operation delivers controlled, repeatable sample positioning across a 60 mm stroke, with approximately 2 mm displacement per complete turn. This benchtop instrument serves quality control, R&D, and educational laboratory work, accommodating a range of Imada force gauges for real-time load acquisition.
– Technical Specifications
• Capacity: 500 N (50 kgf / 112 lbf)
• Force Direction: Tension and Compression
• Travel Method: Hand Wheel Operation
• Stroke: 60 mm
• Travel per Hand Wheel Turn: Approximately 2 mm
• Weight: Approximately 8 kg (17.6 lbs)
• Dimensions: W200 × D249 × H410 mm
– Key Features
• Manual hand wheel control for smooth, incremental force application
• Dual-mode testing: tension and compression in a single apparatus
• Mechanical stopper for positive stroke limitation
• Compact benchtop form factor
• Designed for integration with Imada Z, DPS, PS, and FB series force gauges (sold separately)
• Optional length meter (-S) accessory with 0.01 mm resolution
• Optional long-stroke kit (-L600) adds 350 mm additional travel
– Typical Applications
• Lead wire bonding strength on IC components
• Contact pressure measurement for touch panels and keyboards
• Spring characterization
• Button sew strength evaluation
• Connector pull-off force testing
– Compatibility & Integration
The SV-2 accepts Imada digital and mechanical force measurement instruments from the Z, DPS, PS, and FB product lines. Measurement accessories and extended-stroke configurations enable customization for specific test geometries and displacement requirements.
