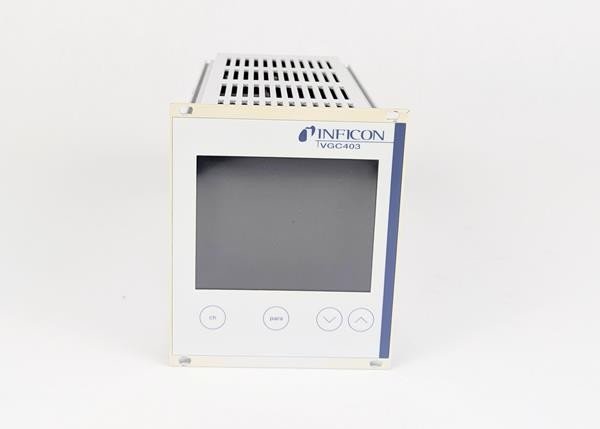

Inficon VGC403 Vacuum Gauge Controller

The Inficon VGC403 Vacuum Gauge Controller monitors and controls vacuum across a full pressure spectrum from 10⁻¹⁰ mbar to 1500 mbar. It interfaces with Inficon active gauges through up to three independent measurement channels, delivering 16-bit resolution via high-precision analog-to-digital conversion. The unit supports user-selectable pressure units (mbar, Torr, Pascal, Micron) and offers six programmable setpoint relays with adjustable hysteresis. A 0–10 V chart recorder output with selectable linear or logarithmic scaling enables integration into existing data acquisition systems. Compact bench-top construction permits panel or 19″ rack mounting in confined laboratory and production environments.

## Technical Specifications

• **Pressure Range:** 10⁻¹⁰ mbar to 1500 mbar (10⁻¹⁰ Torr to 1125 Torr)
• **Measurement Channels:** Up to 3 independent channels
• **Resolution:** 16-bit analog-to-digital converter
• **Pressure Units:** mbar, Torr, Pascal, Micron (user-selectable)
• **Setpoints:** Six adjustable relays with variable hysteresis
• **Chart Recorder Output:** 0–10 V programmable; linear or logarithmic scaling per gauge/combination
• **Input Voltage:** 90–250 V AC, 50–60 Hz
• **Weight:** 12 lbs (shipped)

## Key Features

• Automatic identification of connected Inficon gauges eliminates manual configuration
• Error signal relay available for alarm and fault detection
• RS232 interface supports online firmware upgrades
• CE, ETL, RoHS certified; meets EN 61010-1:2001, EN 61000-3-2:2006, EN 61000-3-3:1995 + A1:2001 + A2:2005, EN 61000-6-2:2005

## Compatibility & Integration

Works with Inficon PSG, PCG, PEG, MPG, CDG, BPG, BCG, and HPG series active gauges for total pressure measurement. RS232 connection enables remote monitoring and parameter adjustment from external control systems.
