Infinera DCM1H-100N-A 130-0008-001

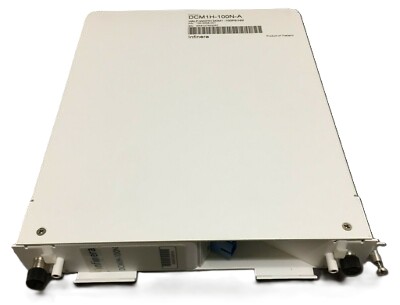

The Infinera DCM1H-100N-A (MPN: 130-0008-001) is a half-width dispersion compensation module engineered to counteract chromatic dispersion in long-haul optical fiber communication systems. Delivering -100 ps/nm of negative dispersion, this module integrates into Infinera DTN and DTN-X platforms to restore signal integrity across C-band transmission windows. The module operates as a 1U-height component compatible with DMC1 chassis installations.

– Technical Specifications

• Part Number: 130-0008-001
• Dispersion Compensation: -100 ps/nm
• Operating Band: C-band
• Module Form Factor: Half-width, 1U height
• Designed Fiber Type: G.652
• HECI Code: WMDFZABFAA

– Key Features

• Half-width module footprint for efficient chassis utilization
• Tuned for negative dispersion compensation in standard single-mode fiber installations
• Direct compatibility with established Infinera DTN ecosystem platforms
• Optical module interface standard for terminal or inline deployment

– Typical Applications

Dispersion compensation modules are deployed at strategic points within optical networks. Common placements include pre-booster amplifier positions at terminal nodes or post-preamplifier locations, where chromatic dispersion accumulation requires correction. The DCM1H-100N-A supports these standard network topologies within C-band transmission systems.

– Compatibility & Integration

The module integrates directly with Infinera DTN and DTN-X platforms via DMC1 chassis integration. G.652 fiber represents the primary design target. Alternative fiber types require consultation with Infinera technical support to verify performance and operational parameters.
