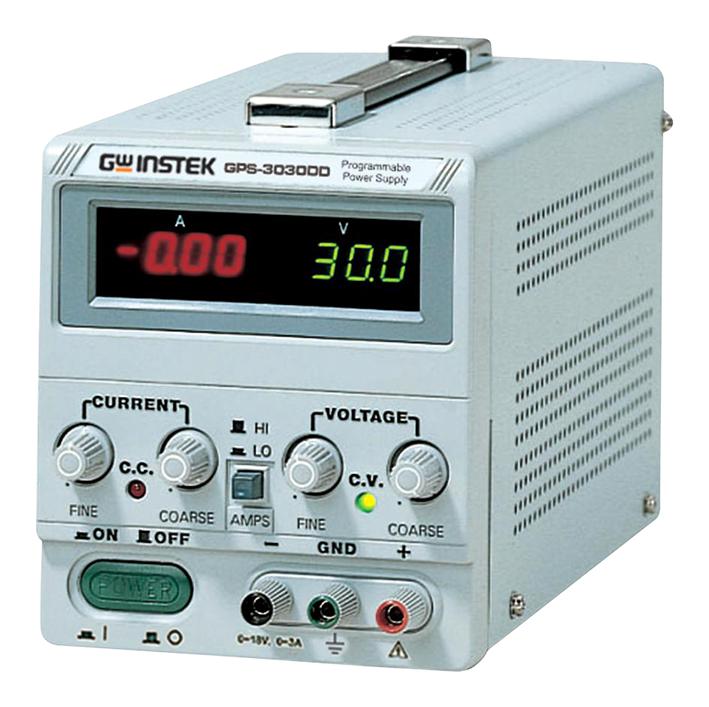

Instek GPS-3030DD Dual Display, Single Output Power Supply

The Instek GPS-3030DD is a single-output linear DC power supply delivering 90 W across 0–30 VDC at 0–3 ADC. Dual 3½-digit LED displays (0.39″ each) provide simultaneous voltage and current readout with ±(0.5% of reading + 2 digits) accuracy. The supply operates in constant voltage (CV) and constant current (CC) modes, each with independently adjustable output via coarse and fine potentiometers.

## Technical Specifications

• **Output Power:** 90 W
• **Voltage Range:** 0–30 VDC
• **Current Range:** 0–3 ADC
• **Display:** Dual 3½-digit LED, 0.39″ each; simultaneous V and I readout
• **Display Accuracy:** ±(0.5% of reading + 2 digits)
• **Input Power:** 100 V, 120 V, 220 V, 240 VAC ±10%, 50/60 Hz
• **Dimensions:** 128 mm (W) × 145 mm (H) × 285 mm (D)
• **Weight:** Approximately 5 kg

## Key Features

**Voltage Mode Performance**
• Line regulation: ≤0.01% + 3 mV
• Load regulation: ≤0.01% + 3 mV (≤3 A) / ≤0.01% + 5 mV (>3 A)
• Ripple & noise: ≤0.5 mVrms (5 Hz–1 MHz, ≤3 A) / ≤1 mVrms (>3 A)
• Recovery time: ≤100 μs (50% load change, minimum 0.5 A load)
• Temperature coefficient: ≤300 ppm/°C

**Current Mode Performance**
• Line regulation: ≤0.2% + 3 mA
• Load regulation: ≤0.2% + 3 mA
• Ripple current: ≤3 mArms

**Protection & Control**
• Overload protection included
• Reverse polarity protection included
• Internal load selection switch for continuous or dynamic load operation
• Remote control terminals for external device operation via external voltage
• Series/parallel connection capability for higher voltage or current demands

## Typical Applications

Laboratory testing, educational institution experiments, production line commissioning, pulsed current applications, and precision component characterization.

## Compatibility & Integration

Front-panel output terminals accept standard connections; European-type jack terminal option available. Rear-panel remote control terminals enable external programming and operation integration.
