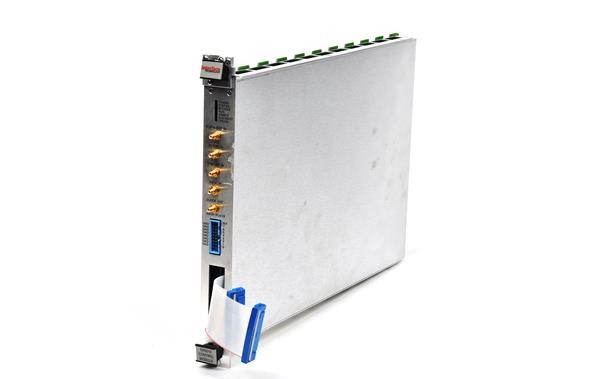

Interface Technology SR5010 Timing / Control Module

The Interface Technology SR5010 is a timing and control module for the SR5000 Digital Test Subsystem, delivering precise timing signals and real-time test sequence control at data rates up to 50 MHz. Built on a dual-processor architecture, the System Processor manages VXI Bus messaging and SCPI command execution, while the Control Processor operates as the real-time digital test engine, handling conditional branching, looping, and logic analysis trigger evaluation.

## Technical Specifications

• **Data Rate:** Up to 50 MHz
• **Processors:** Dual-processor architecture (System Processor and Control Processor)
• **Test Program Storage:** 32 different test programs
• **Vector Depth:** 64K vectors
• **I/O Expandability:** Up to 640 Inputs and 640 Outputs
• **Power Requirements:**
– +5.0 V @ 5.5 A (27.5 W)
– -5.2 V @ 0.8 A (4.16 W)
– +12 V @ 0.2 A (2.40 W)
– -12 V @ 0.2 A (2.40 W)
– -2.0 V @ 0.2 A (0.40 W)
– Total Maximum: 36.86 W
• **VXI Bus Interface:** IT9010M chipset; compliant with VXI Bus Specification Versions 1.3 and 1.4
• **Data Transfer:** A32/D32 Binary Transfer protocol

## Key Features

• RAM-Backed and Algorithmic Pattern Generation modes
• Programmable edge placement for data formatting precision
• 16 Trigger Sequences with multilevel triggering capability
• Response Qualifier Trigger Words supporting up to 8 combinations per sequence
• Conditional pattern looping and branching for dynamic test control
• Message-based command structure for streamlined test program development
• Trigger actions select between UUT response data or compare error data recording

## Typical Applications

Automatic test equipment (ATE) environments requiring synchronized device control, digital pattern generation with real-time branching logic, and advanced trigger-based data acquisition across large I/O matrices.

## Compatibility & Integration

C-size slot module designed for SR5000 Digital Test Subsystem integration. Controls up to 20 SR5050 CMOS I/O modules, enabling configurations up to 640 I/O pins. VXI Bus Master capability passes test parameters and data to SR5000 I/O modules via message-based command protocol.
