JDS Uniphase MAPS+1W251A1FP

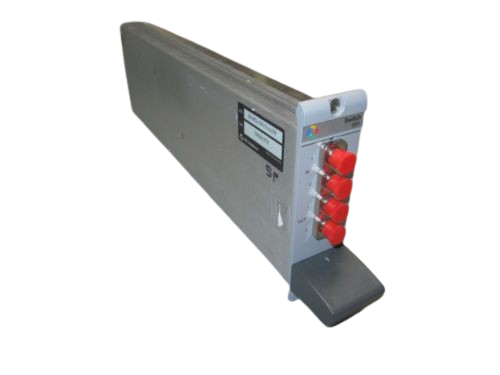

The JDS Uniphase MAPS+1W251A1FP is a hot-swappable instrumentation cassette module designed for integration into the JDSU Multiple Application Platform System (MAPS). This modular test and measurement platform accommodates over 15 different cassette types across two chassis configurations: the MAP Master (19-inch, 8-slot) and MAP Benchtop (9.5-inch, 3-slot). The MAPS+1W251A1FP plugs directly into the common hot-swappable backplane, enabling rapid reconfiguration of optical test capabilities without chassis replacement or downtime.

## Technical Specifications

**System Platform**
• JDSU Multiple Application Platform System (MAPS)
• Hot-swappable cassette architecture with common backplane
• Dynamic firmware with automatic cassette identification

**Control & Communication**
• Front panel: 9-key keypad with color display
• Remote interfaces: RS-232 and GPIB
• Field-replaceable control modules

**Environmental Ratings**
• Operating temperature: 0 to 50 °C
• Storage temperature: −30 to 60 °C
• Humidity: < 80% RH (0 to 40 °C, non-condensing)

## Key Features

• Hot-swappable design enables field configuration changes without system power-down
• Automatic cassette detection and firmware loading
• Modular power supply (MAP+2A02) supports hot replacement
• Field-replaceable keypad/display and remote interface modules
• Dual chassis options accommodate lab and rack-mount environments

## Typical Applications

Optical test and measurement workflows requiring flexible, reconfigurable instrumentation. The multi-slot architecture supports integration of complementary modules for comprehensive characterization tasks.

## Compatibility & Integration

• Compatible with MAP Master (MAP+2M00) and MAP Benchtop (MAP+2B00) chassis
• Integrates with MAP ecosystem of 15+ instrumentation cassette types
• Supports parallel operation with other hot-swappable modules in shared backplane
• User Manual: Product Code 10108925; MAP Programming Guide available
