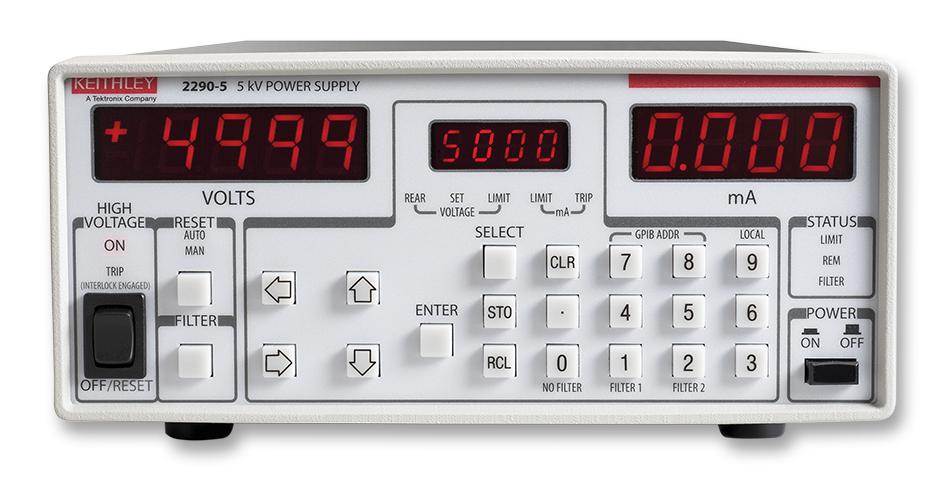

Keithley 2290E-5 – 5KV Power Supply

The Keithley 2290E-5 is a single-output 5 kV DC power supply engineered for high-voltage component testing, materials research, insulation validation, and high-energy physics experiments. It delivers precise programmable voltage and current control across a 50 V to 5000 V range with 5 mA maximum output current and 55 W maximum power. The instrument combines low-noise performance—down to 1.0 mVRMS at 1 kV with selectable filtering—with fast transient response and arc/short-circuit protection, making it suitable for applications demanding both accuracy and safety.

## Technical Specifications

**Output Performance**
• Voltage Range: 50 V to 5000 V
• Maximum Current: 5 mA
• Maximum Power: 55 W
• Voltage Resolution: 1 V
• Current Resolution: 1 µA
• Voltage Set Accuracy: ±1 V typical (±2 V max); ±(0.01% of setting + 2.5 V)
• Current Set Accuracy: 0.5% of full scale; ±(0.01% of setting + 2.5 µA)

**Stability & Noise**
• Output Ripple Noise: 100 mVRMS (unfiltered); <3 mVRMS (filtered); 1.0 mVRMS @ 1 kV; 3.0 mVRMS @ 5 kV with Filter 2
• Line Regulation: 0.001% for ±10% input voltage change
• Load Regulation: 0.005% for 100% load change
• Stability: ±0.01% per hour; <0.03% per eight hours
• Temperature Drift: 50 ppm/°C (0° to 40°C)

**Dynamic Response**
• Settling Time: <4 seconds to within 1 V of final value; 99.9% within 3 seconds
• Recovery Time: 120 ms (40% step load change)
• Discharge Time: <6 seconds to <1% full scale (typical); <30 seconds to 50 VDC with filter

**Power Input**
• Nominal: 240 VAC
• Range: 216 VAC to 264 VAC (±10%)
• Frequency: 50 or 60 Hz

## Key Features

• Programmable voltage and current limits with arc and short-circuit protection
• Selectable output filters for noise minimization in sensitive measurements
• Safety interlock system for high-voltage operations
• Digital display for real-time output monitoring
• Analog control via external 0 to +10 V input (±0.2% accuracy) with 1 MΩ impedance
• Analog monitor outputs on BNC connectors for voltage and current observation
• Stored output charge: <20 µC maximum

## Typical Applications

• Component and device characterization under high-voltage stress
• Dielectric breakdown and insulation testing
• Materials research requiring high electric fields
• High-energy physics detector and accelerator studies

## Compatibility & Integration

• IEEE-488 interface for remote programmability
• Analog control and monitoring outputs for integration into automated test systems
