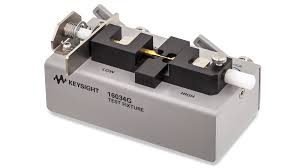

Keysight 16034G SMD Test Fixture, DC to 40MHz, BNC, 4 Terminal-Pair

The Keysight 16034G is a Surface Mount Device test fixture engineered for precise impedance characterization from DC to 40 MHz. It delivers 4-terminal pair connectivity via BNC connectors, isolating voltage and current measurement paths to minimize errors from test lead and contact impedances. This configuration is essential for accurate measurements of capacitance, inductance, and resistance in SMD components while rejecting external electromagnetic interference.

– Technical Specifications

• Frequency Range: DC to 40 MHz
• Connector Type: BNC
• Configuration: 4-Terminal Pair
• Measurement Parameters: Capacitance, inductance, resistance

– Key Features

• 4-terminal pair design isolates measurement paths and reduces parasitic impedance errors
• Minimized contact resistance for reliable electrical connections to SMDs
• EMI shielding maintains signal integrity during measurements
• Durable construction designed for laboratory and production environments

– Typical Applications

• Component characterization in R&D environments
• Quality control and manufacturing verification
• Failure analysis and circuit troubleshooting

– Compatibility & Integration

BNC connectors interface directly with impedance analyzers, oscilloscopes, and signal generators. The fixture provides a dedicated interface for SMD placement with consistent, repeatable contact geometry. Measurement accuracy depends on the connected impedance analyzer and applied calibration procedures.
