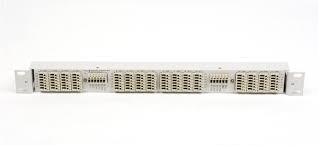

Keysight / Agilent / HP E1586A Rack Mount Terminal Panel

The Keysight E1586A is a rack mount terminal panel engineered to extend connectivity for VXIbus instruments in distributed measurement systems. It provides organized signal routing and accessible I/O termination when VXIbus modules are positioned remotely from primary measurement connections, reducing system complexity and streamlining maintenance in automated test and data acquisition environments.

## Technical Specifications

• Model: E1586A
• Product Type: Rack Mount Terminal Panel
• Connection Capacity: 32 × 3-wire connections
• Rack Format: Standard 19-inch rack mount

## Key Features

• Supports 32-channel connectivity to VXIbus instruments via 3-wire terminal connections
• Structured interface for signal routing and termination
• Enables remote instrument placement without sacrificing accessibility
• Simplifies system layout when measurement equipment requires distance separation

## Typical Applications

• Extending connections for VXIbus instruments positioned at distance from primary measurement hardware
• Distributed automated test systems requiring organized signal termination
• Data acquisition configurations where modular instrument separation improves system efficiency

## Compatibility & Integration

Designed for integration with VXIbus instruments including the HP E1413C High Speed A/D Converter, HP E1415A Algorithmic Closed Loop Controller, and HP E1476A 64-Channel T/C and Low Offset Relay Multiplexer. Mounts in standard 19-inch rack systems.
