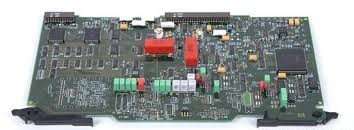

The Keysight E5515-60221 is a printed circuit board assembly engineered for the E5515 series wireless communications test sets, specifically the 8960 Series 10 platform. This PCB component delivers essential functionality for high-volume manufacturing, design verification, and field service of wireless devices across multiple air interface standards.
## Technical Specifications
The E5515-60221 operates within the frequency range of 292 MHz to 2700 MHz, supporting RF measurements with output power levels spanning -127 dBm to -10 dBm. System-level VSWR performance is <1.14:1 across 400 to 1000 MHz. Level accuracy is maintained within ±1.1 dB. The board functions in an operating temperature range of 0–55°C.
## Key Features
• High-speed, accurate, and repeatable RF measurements across extended frequency bands
• Support for multiple wireless standards including GSM, GPRS, EGPRS, TIA/EIA-136, AMPS, cdma2000, 1xEV-DO, W-CDMA, HSPA, HSPA+, and DC-HSDPA with MIMO
• Software upgradeable architecture for standards evolution
• GPIB and LAN interfaces enabling remote control and test automation
• Flexible network emulation and signaling capabilities
## Typical Applications
Designed for integration into high-volume RF test environments, the E5515-60221 supports manufacturing test floors, R&D verification labs, and field service operations requiring multistandard wireless device validation.
## Compatibility & Integration
The E5515-60221 board is compatible with Keysight E5515 series test equipment, specifically the E5515C and E5515E variants of the 8960 Series 10 Wireless Communications Test Set. It functions as part of the established E5515C/E platform, widely deployed across wireless device manufacturing and certification workflows.
