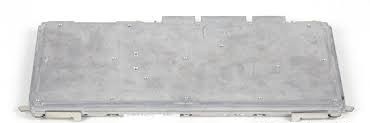

Keysight / Agilent / HP E5515-61199 Vector Board

The Keysight/Agilent/HP E5515-61199 Vector Board is a signal routing and interconnectivity module engineered for the E5515 series wireless communication test sets, commonly designated the 8960 Series 10. This board enables RF measurements and wireless protocol testing across multiple cellular standards, supporting device development, verification, and manufacturing workflows. It integrates with E5515C and E5515E hardware platforms to deliver flexible signal interconnection and measurement capability across a wide frequency span.

## Technical Specifications

• **Frequency Range:** 292 MHz to 2700 MHz
• **Output Power:** −127 dBm to −10 dBm
• **VSWR:** Less than 1.14:1 (400 MHz to 1000 MHz)

## Key Features

• Modular vector board architecture for signal routing within E5515 test platforms
• Dual interface support: GPIB for instrument control and LAN for remote operation and data transfer
• Wide dynamic range power measurement from −127 dBm to −10 dBm
• Controlled impedance matching across the 400 MHz to 1000 MHz band

## Typical Applications

• Cellular device RF characterization and acceptance testing
• Wireless protocol validation and conformance measurement
• Manufacturing test automation for multi-standard handset and module verification
• Development support for GSM, CDMA, TDMA, and other cellular standards

## Compatibility & Integration

• **Supported Platforms:** Keysight/Agilent/HP E5515C and E5515E 8960 Series 10 Wireless Communications Test Sets
• **Control Interfaces:** GPIB and LAN connectivity for bench and networked operation
• Available in used and refurbished condition from qualified sources
