Keysight (Agilent) N1912A

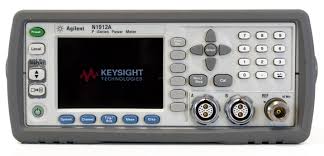

The Keysight N1912A is a dual-channel power meter engineered for precise RF power measurements across demanding test environments. This instrument combines high-speed sampling with advanced pulse analysis to characterize complex signals including WiMAX, DME, and HSDPA formats. The N1912A delivers measurements of average power, peak power, peak-to-average ratio, and pulse timing parameters with 100 Msamples/sec continuous sampling and ≤13 ns rise/fall time performance above 500 MHz.

– Technical Specifications

Sampling & Bandwidth
• Maximum sampling rate: 100 Msamples/sec (continuous)
• Video bandwidth: ≥30 MHz
• Single-shot bandwidth: ≥30 MHz
• Rise/fall time: ≤13 ns (frequencies ≥500 MHz)
• Minimum pulse width: 50 ns
• Maximum capture length: 1 second
• Maximum pulse repetition rate: 10 MHz

Power Measurement Performance
• Dynamic range with P-Series sensors: –35 to +20 dBm (>500 MHz); –30 to +20 dBm (50–500 MHz)
• Average power accuracy (N1921A): ≤±0.2 dB or ±4.5%
• Average power accuracy (N1922A): ≤±0.3 dB or ±6.7%
• Instrumentation linearity: ±0.8%
• Measurement parameters: average power, peak power, peak-to-average ratio, rise time, fall time, pulse width, time to positive/negative occurrence

Triggering
• Internal trigger range: –20 to +20 dBm; latency 160 ns ±10 ns; jitter ≤5 ns rms
• External TTL trigger: latency 30 ns ±10 ns; high >2.4 V; low <0.7 V

– Key Features

• Dual-channel architecture for simultaneous measurements
• 22 predefined signal formats for rapid configuration
• Internal zeroing and calibration capability
• BenchVue software enabled for data logging and visualization
• LXI Class-C compliant Ethernet interface for automated test system integration

– Typical Applications

• Pulsed RF signal analysis in R&D and manufacturing
• Production testing of wireless and radar systems
• Service and troubleshooting environments requiring high timing resolution

– Compatibility & Integration

Built-in Ethernet connectivity with LXI Class-C compliance enables direct integration into automated measurement systems. Compatible with N1921A and N1922A P-Series power sensors, extending frequency coverage to 40 GHz.
