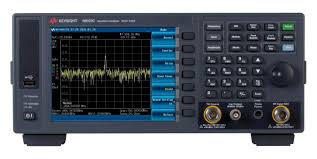

Keysight N9322C Basic Spectrum Analyzer, 9 kHz to 7 GHz

The Keysight N9322C Basic Spectrum Analyzer is a general-purpose instrument for spectrum analysis and signal monitoring from 9 kHz to 7 GHz. It delivers absolute amplitude accuracy of ±0.3 dB and outstanding noise performance with a displayed average noise level of -152 dBm at 1 GHz (10 Hz minimum RBW). The instrument features a 50 dB input attenuator with 1 dB steps, adjustable resolution bandwidth from 10 Hz to 3 MHz, and a maximum analysis bandwidth of 1 MHz. Phase noise performance reaches -115 dBc/Hz at 1 MHz offset and -90 dBc/Hz at 10 kHz offset. Sweep times range from 2 ms to 1000 s for spans ≥100 Hz, with frequency stability rated at ±0.1 ppm annual aging.

– Technical Specifications

• Frequency Range: 9 kHz to 7 GHz
• Absolute Amplitude Accuracy: ±0.3 dB
• Overall Amplitude Accuracy: ±0.6 dB
• Displayed Average Noise Level (DANL) @ 1 GHz: -152 dBm (10 Hz minimum RBW); -162 dBm/Hz typical
• Phase Noise: -90 dBc/Hz @ 1 GHz (10 kHz offset); -115 dBc/Hz @ 1 GHz (1 MHz offset)
• Resolution Bandwidth: 10 Hz to 3 MHz
• Maximum Analysis Bandwidth: 1 MHz
• Input Attenuator: 50 dB in 1 dB steps
• Third-Order Intercept (TOI): +15 dBm @ 1 GHz
• Sweep Time: 2 ms to 1000 s (span ≥100 Hz)
• Frequency Stability: ±0.1 ppm annual aging rate
• Display: 6.5-inch TFT color display, multiple language interface
• Dimensions: 132.5 × 320 × 400 mm
• Weight: 7.6 kg
• Operating Temperature: 5 to 45 °C
• Power Consumption: 25 W nominal

– Key Features

• Channel Power, Occupied Bandwidth (OBW), and Adjacent Channel Power Ratio (ACPR) measurements
• Spectrum Emission Mask (SEM) and ASK/FSK Demodulation Analysis (Option DMA)
• Scalar Network Analysis with optional 7 GHz Tracking Generator (Option TG7)
• Reflection measurements including return loss and VSWR (Option RM7 with TG7)
• Distance-to-Fault and insertion loss measurements
• Power meter mode compatible with Keysight U2000 Series USB power sensors (Option PWM)
• High-accuracy peak power measurement with U2020 X-Series sensors (Option PWP)
• Spectrum monitoring and time-gated spectrum analysis (Options MNT, TMG)
• Task Planner automation (Option TPN)

– Interfaces & Integration

USB device and 100Base-T LAN ports with Socket/Telnet remote control. TTL trigger input, 10 MHz reference input/output, and optional GPIB interface (Option G01) support flexible system integration.
