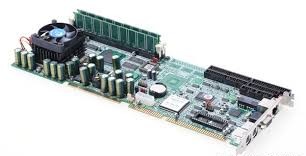

Kontron / ICS Advent SBC-SCPIII-VE-04 Single Board Computer

The Kontron/ICS Advent SBC-SCPIII-VE-04 (Endeavor Plus VE) is a legacy single board computer engineered for industrial ISA-based systems. Built around the Intel 810E chipset, it accommodates Intel Pentium III FC-370 (500–850 MHz) or Celeron (333–533 MHz) processors via Socket 370, delivering deterministic processing with selectable CPU core/bus clock ratios from x2 to x8 across 66/100 MHz front side bus options. The board integrates graphics, optional dual Ethernet and SCSI controllers, and supports up to 1 GB SDRAM across two 168-pin DIMM sockets.

## Technical Specifications

**Processor & Chipset**
• Intel Pentium III FC-370 (500–850 MHz) or Celeron (333–533 MHz)
• Socket 370, Intel 810E chipset
• FSB: 66/100 MHz; selectable CPU core/bus ratio x2 to x8
• Integrated Intel 810E graphics controller with 4 MB VRAM

**Memory**
• Two 168-pin DIMM sockets supporting SDRAM (non-ECC, non-buffered)
• Maximum capacity: 1 GB SDRAM

**Storage & I/O**
• Two IDE connectors (ATA/66 capable)
• Optional AIC-7892 Ultra-160/m SCSI host adapter, 68-pin connector
• DiskOnChip socket included
• Two serial ports, one parallel port
• Dual USB 1.1 ports
• Optional 10/100 Base-T Ethernet (Intel 82559)
• PS/2 keyboard and mouse connectors
• VGA display connector

**BIOS & System**
• AMI BIOS with 4 Mbit Firmware Hub, 256 KB flash ROM (software-upgradeable)
• Supports DMI, PnP, APM
• Programmable watchdog timer: 0.5 sec./min. to 254.5 sec./min. (255 intervals)
• Prefail detect with IRQ signal routing to IRQ10 or IRQ11
• Onboard 3.0 V lithium CMOS battery with diode protection

**Power & Physical**
• +5 V @ 10 A (typical), +12 V @ 80 mA, −12 V @ 20 mA
• ATX power control interface
• Dimensions: 338.5 mm (L) × 122 mm (W)
• Operating temperature: 0°–55°C

## Key Features

• ISA-only backplane compatibility for legacy system integration
• Integrated 2D/3D graphics with dedicated VRAM
• Dual IDE and optional Ultra-160/m SCSI expansion
• Software-configurable watchdog with prefail detection
• Flexible memory architecture (up to 1 GB SDRAM)

## Typical Applications

• Industrial control and automation systems
• Legacy ISA-based embedded platforms
• Real-time process monitoring and data acquisition

## Compatibility & Integration

Supported operating systems: Windows 95/98/NT/2000, Linux. The board’s ISA-only backplane interface and Socket 370 processor design ensure compatibility with established industrial infrastructure while providing modern processing capability within tight thermal and power envelopes.
