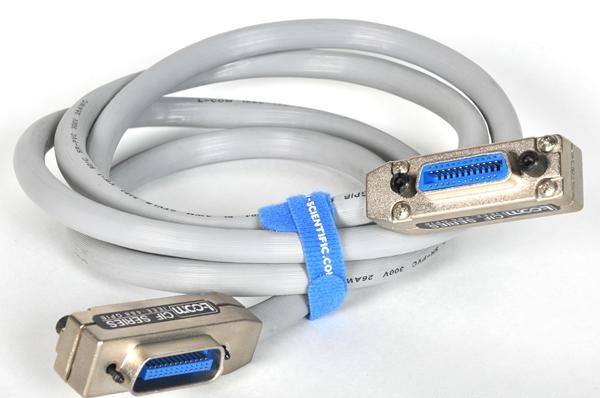

L-Com IEEE-488 GPIB Normal / Normal Cable CIF Series (0.5 Meter)

The L-Com CIF24 Series IEEE-488 GPIB cable delivers reliable data transfer in test, measurement, and instrument control applications. This 0.5-meter Normal/Normal configuration connects standard GPIB peripherals with dual-shielded construction and gold-plated contacts rated to IEEE-488 maximum speeds of 1 Mbyte/s.

## Technical Specifications

• **Interface:** IEEE-488 GPIB, 24-pin connectors
• **Cable Length:** 0.5 meters (approx. 20 inches)
• **Configuration:** Male/Female connectors on each end
• **Data Rate:** Up to 1 Mbyte/s (IEEE maximum)
• **Cable Capacitance:** ≤150 pF/m (twisted pair construction)
• **Operating Temperature:** -20°C to +80°C
• **Jacket:** Gray PVC, UL 94V-0 flame-retardant

## Key Features

• Three-layer shielding system: two foil shields plus copper braid (>90% coverage) reduces EMI while maintaining low capacitance
• Diecast aluminum connectors with nickel plating and overlapping seams prevent corrosion and leakage
• Copper alloy contacts with 30-microinch gold plating ensure low-resistance connections
• Crimped ferrule strain relief and firm-gripping steel thumbscrews provide secure mechanical attachment
• Construction complies with L-Com Specification CIB-CS1 and ANSI/IEEE Std 488.1-1987
• All conductors twisted pair configuration maintains IEEE specifications

## Typical Applications

• Test and measurement instrument interconnection
• Programmable control systems and data acquisition
• Oscilloscope, signal generator, and computer peripherals
• Multi-instrument daisy-chain configurations

## Compatibility & Integration

Directly compatible with HP, AMP, and Amphenol IEEE-488 interfaces. Designed for systems where electromagnetic interference mitigation is critical. Exceeds IEEE-488 standards for EMI-sensitive environments and passes stringent emissions testing.
