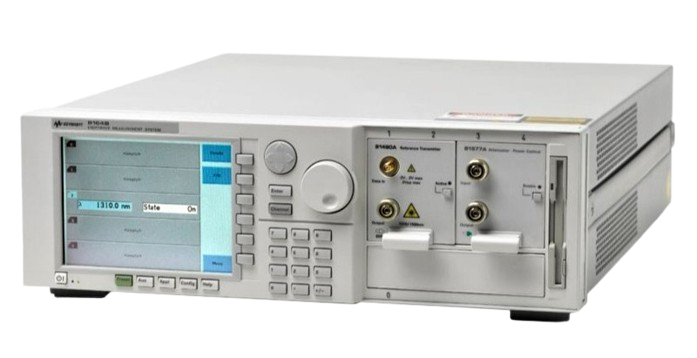

The Agilent 8164A Lightwave Measurement System is a modular mainframe for optical and photonic device characterization. It integrates multiple specialized measurement modules into a single platform, delivering synchronized lightwave measurements across configurable test channels. The system supports up to five module slots plus dedicated tunable laser source capability, enabling customized test configurations for passive components, fiber devices, and integrated photonic circuits.
– Technical Specifications
Mainframe Architecture
• One slot for tunable laser source (TLS)
• Four slots for power modules, return loss modules, compact tunable lasers, or fixed laser sources
• Alternatively: five slots for 8153A and 8163A/B Lightwave Multimeter modules plus one TLS slot
• High-resolution color or graphical monochrome display (190 × 300 points)
Interfaces & Control
• GPIB for remote control
• RS232C serial interface with VGA port
• Parallel port (Centronics)
• PC Card interface
• 3.5″ floppy drive for data storage
• Configurable hardware trigger input/output ports with true synchronous triggering across all channels
Power & Environmental
• Input: AC 100–240 V ±10%, 50/60 Hz
• Maximum consumption: 280 VA or 120 VA
• Operating temperature: +10°C to +35°C or 0°C to +45°C
• Storage temperature: +40°C to +70°C
• Humidity: <95% RH (0°C to +45°C)
• Maximum operating altitude: 3000 m
– Key Features
• Extended system trigger and clocking for synchronized measurements
• Optical power, loss, and return loss measurement capabilities
• Mode-hop-free tunable laser sources with continuous output and precise wavelength control
• Low Source Spontaneous Emission (SSE) output for accurate crosstalk and FBG characterization
• Adjustable optical attenuation up to 60 dB for high-power testing
• Insertion loss measurement at up to 8 device ports during wavelength sweep mode
• Built-in passive component test, stability monitoring, and data logging applications
– Compatibility & Integration
Supports all 8153A and 8163A/B Lightwave Multimeter modules. Compatible tunable laser modules include the 81480A, 81640A, 81680A, 81682A, 81672B, and compact 81689A. Filler modules (e.g., 81645A) allow operation without tunable laser installation.
