Repair and Service Evaluation – HP/Agilent 8592L,8593A,8593E,8593EM,8594A,8594E,8594EM,8594L

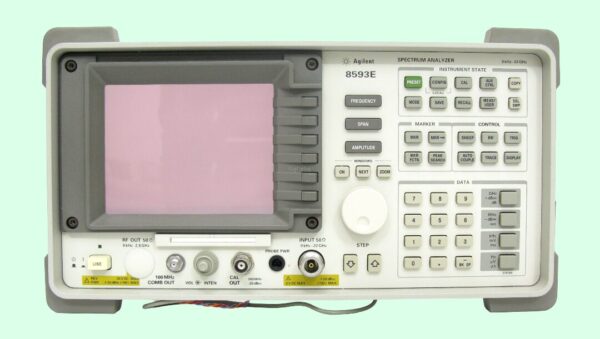

The HP/Agilent 8592L, 8593A, 8593E, 8593EM, 8594A, 8594E, 8594EM, and 8594L spectrum analyzers deliver portable, benchtop-ready RF and microwave signal analysis across multiple frequency bands. These instruments combine field-grade portability with comprehensive measurement capabilities, featuring intuitive softkey interfaces, built-in memory card readers for custom measurement personalities, and optional tracking generators for component and frequency response testing. Models support downloadable personalities for cable TV, broadcast, and EMI precompliance applications.

– Technical Specifications

Frequency Range
• 8592L, 8593A, 8593E: 9 kHz to 22 GHz (extends to 26.5 GHz with Option 026/027)
• 8593EM: 9 kHz to 22 GHz
• 8594A, 8594E, 8594EM, 8594L: 9 kHz to 2.9 GHz

Amplitude
• Operating range: −112 dBm to +30 dBm
• Displayed average noise level: −115 dBm (select models)

Resolution Bandwidth (RBW)
• Standard: 1 kHz to 3 MHz
• Narrow bandwidths available: 30 Hz, 100 Hz, 300 Hz (Option 130)
• EMI bandwidths: 9 kHz, 120 kHz

Video Bandwidth (VBW)
• 30 Hz to 1 MHz in 1, 3, 10 sequences

Frequency Accuracy
• Standard: 7.5 ppm
• Marker accuracy varies by model: ±230 Hz at 1 GHz (8593A with precision reference) to ±165 kHz at 22 GHz (8592L)

Phase Noise
• Typically 105 dBc/Hz at 30 kHz offset
• 90 dBc/Hz at >10 kHz offset (CW signal, select models)

Dynamic Range
• Second-order intercept: 77 dB
• Third-order intercept: 90 dB

– Key Features

• Softkey interface with intuitive navigation
• Built-in memory card reader for loading measurement personalities and data storage
• Optional tracking generators for response testing
• Optional GPIB (IEEE-488) and RS-232 interfaces
• Parallel printer interface available
• Multiple resolution bandwidth options including EMI-compliant filters

– Typical Applications

• EMI precompliance testing
• General-purpose spectrum analysis
• Cable TV and broadcast measurements
• RF component characterization and frequency response analysis

– Compatibility & Integration

Instruments accept downloadable measurement personalities tailored to specific applications. Optional communication interfaces enable remote control and automated test sequences in production and field environments.
