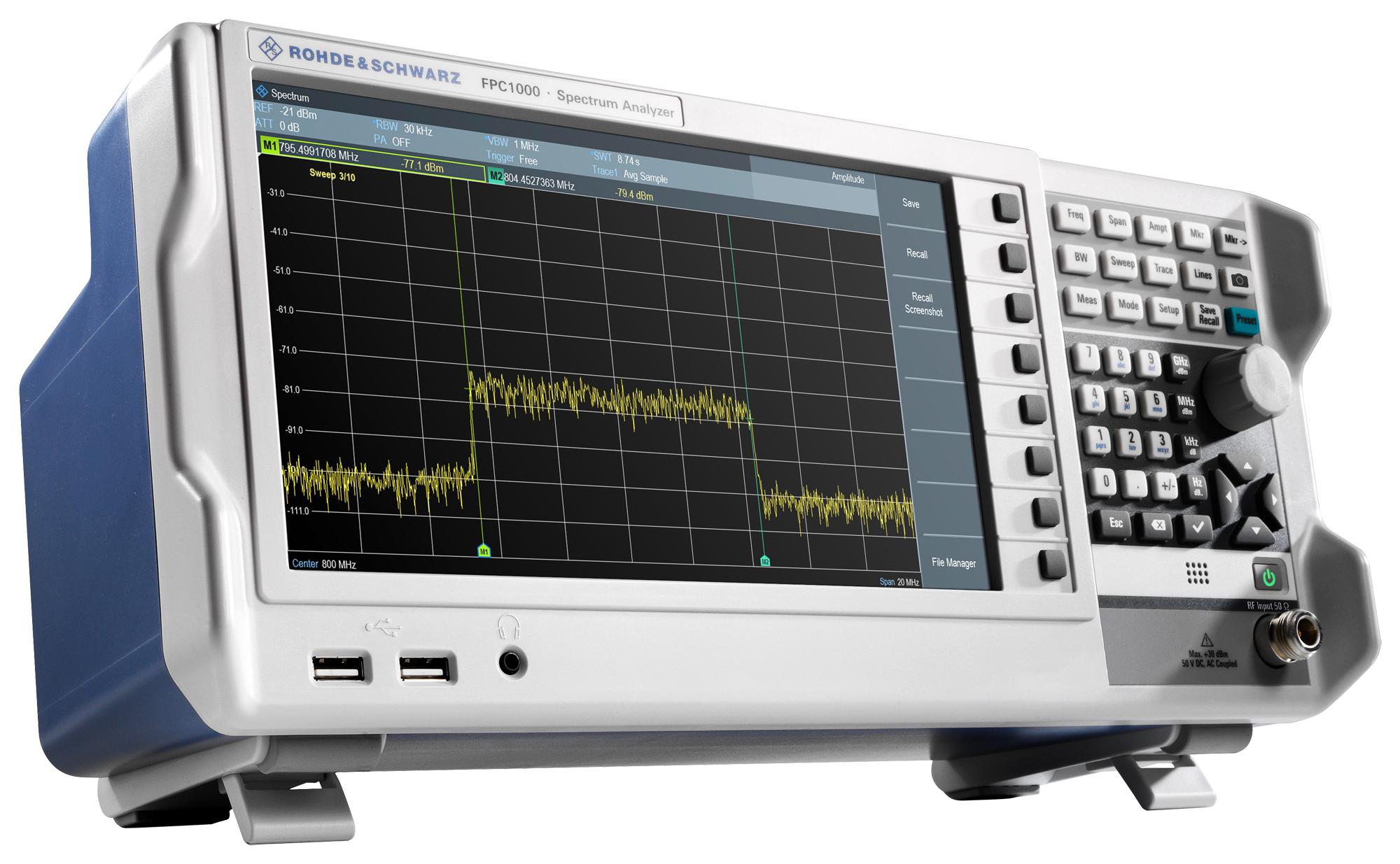

The Rohde & Schwarz FPC1000 Spectrum Analyzer delivers signal analysis from 5 kHz to 1 GHz, with software-upgradeable options extending to 2 GHz or 3 GHz. Engineered for development, production, service, education, and research, this German-built instrument combines exceptional RF performance with a class-leading 10.1 inch WXGA display—26% larger and 160% higher resolution than comparable equipment.
– Technical Specifications
Frequency & Resolution
• Frequency range: 5 kHz to 1 GHz (expandable to 2 GHz or 3 GHz)
• Resolution bandwidth: down to 1 Hz
• Marker resolution: 0.1 Hz
RF Performance
• Noise floor (DANL): –146 dBm typical without preamplifier; –165 dBm typical with optional FPC1000-B22 preamplifier
• Maximum input power: +30 dBm (1 W); tolerates 2 W at RF input
• Dynamic range: wide measurement span from low noise floor to high input power
• Third-order intercept (TOI): +7 dBm at 1 GHz; +10 dBm at 2.4 GHz (measured)
• Second harmonic intercept (SHI): –60 dBc nominal
• Image frequencies: <–70 dBc to –60 dBc nominal (dependent on frequency)
• Residual spurious response: <–90 dBm nominal
• Input impedance: 50 Ω nominal
• VSWR: <1.5 nominal
Display & Interface
• 10.1 inch WXGA display (1366 × 768 pixels)
• Wired Ethernet (10/100BASE-T, RJ-45)
• USB Type A and Type B (2.0)
• Optional Wi-Fi connectivity
• Remote control via Ethernet or Wi-Fi using R&S InstrumentView (Windows) or R&S MobileView (iOS/Android)
– Key Features
Exceptional measurement dynamic range combines sub-1 Hz resolution bandwidth with high input tolerance. Wide frequency coverage with field-upgradeable expansion. Compact design: 396 mm W × 178 mm H × 147 mm D, weighing 3 kg.
– Typical Applications
RF signal characterization, interference detection, EMC pre-compliance testing, educational measurement labs, and production testing environments requiring high-resolution spectral analysis.
– Compatibility & Integration
Operates in English, German, French, and Italian. Includes power cable and USB cable for PC connection.
