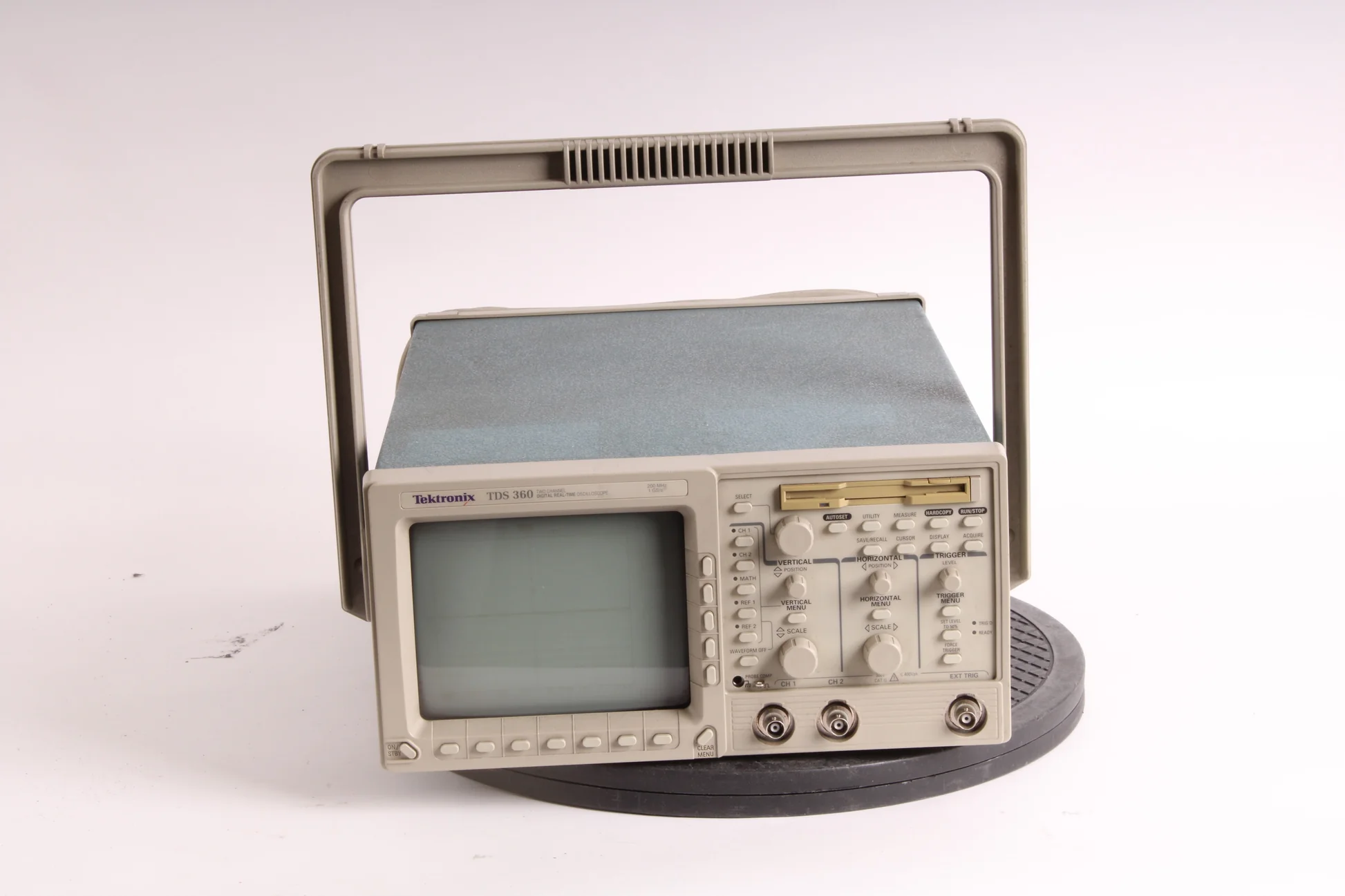

The Tektronix TDS360 is a 2-channel digital storage oscilloscope delivering 200 MHz bandwidth and 1 GS/s real-time sampling per channel. Purpose-built for waveform acquisition and analysis, it captures high-speed signals with minimal aliasing and detects glitches as narrow as 10 ns using Peak Detect mode. The instrument combines versatile trigger capabilities, comprehensive measurement automation, and FFT analysis in a compact form factor suitable for bench and field environments.
– Technical Specifications
• Bandwidth: 200 MHz
• Channels: 2
• Real-Time Sampling Rate: Up to 1 GS/s per channel
• Record Length: 1 K sample points per channel
• Vertical Resolution: 8-bit (256 levels)
• Vertical Sensitivity: 2 mV/div to 10 V/div
• Vertical Accuracy: 2%
• Vertical Position Range: ±5 divisions
• Horizontal Time Base: 2.5 ns/div to 5 s/div
• Horizontal Accuracy: ±0.01%
• Peak Detect Capability: Captures glitches ≥10 ns
– Key Features
• Trigger Modes: Edge and video triggers; auto and normal modes
• Trigger Sources: CH1, CH2, Line, External
• Acquisition Modes: Sample, Peak Detect, Envelope, Average, Dot, Dot Accumulate, Vector, Vector Accumulate
• Automatic Measurements: 21 parametric measurements
• FFT Analysis: Real-time frequency domain analysis
• Waveform Math: Add, subtract, multiply operations
• Reference Waveforms: Two 1000-point stored waveforms
• Front-Panel Setups: 10 instrument configurations
• Display Modes: YT and XY formats; roll mode at 0.1 s/div and slower
– Storage and Interfaces
• Floppy Disk Drive: 3.5-inch, 1.44 MB/720 KB, DOS-compatible
• Graphics Export: .BMP, .TIF, .PCX, .EPS formats
• Spreadsheet Export: Excel, Lotus 1-2-3, MathCAD
• Option 14 I/O Interface: GPIB (IEEE-488.2), RS-232-C (38,400 baud max, 9-pin DTE), parallel printer (Centronics), VGA monitor output
– Operating Environment
• Temperature: -10°C to +55°C (operating); -51°C to +71°C (non-operating)
• Humidity: Up to 95% RH at ≤40°C; up to 75% RH from 41–55°C
• Operating Altitude: Up to 15,000 ft (4,570 m)
• Safety: UL 3111-1, EN61010, CAN/CSA C-22.2 No. 1010.1-92
• EMC: EN50081-1, VFG 0243, FCC Part 15 Class A
