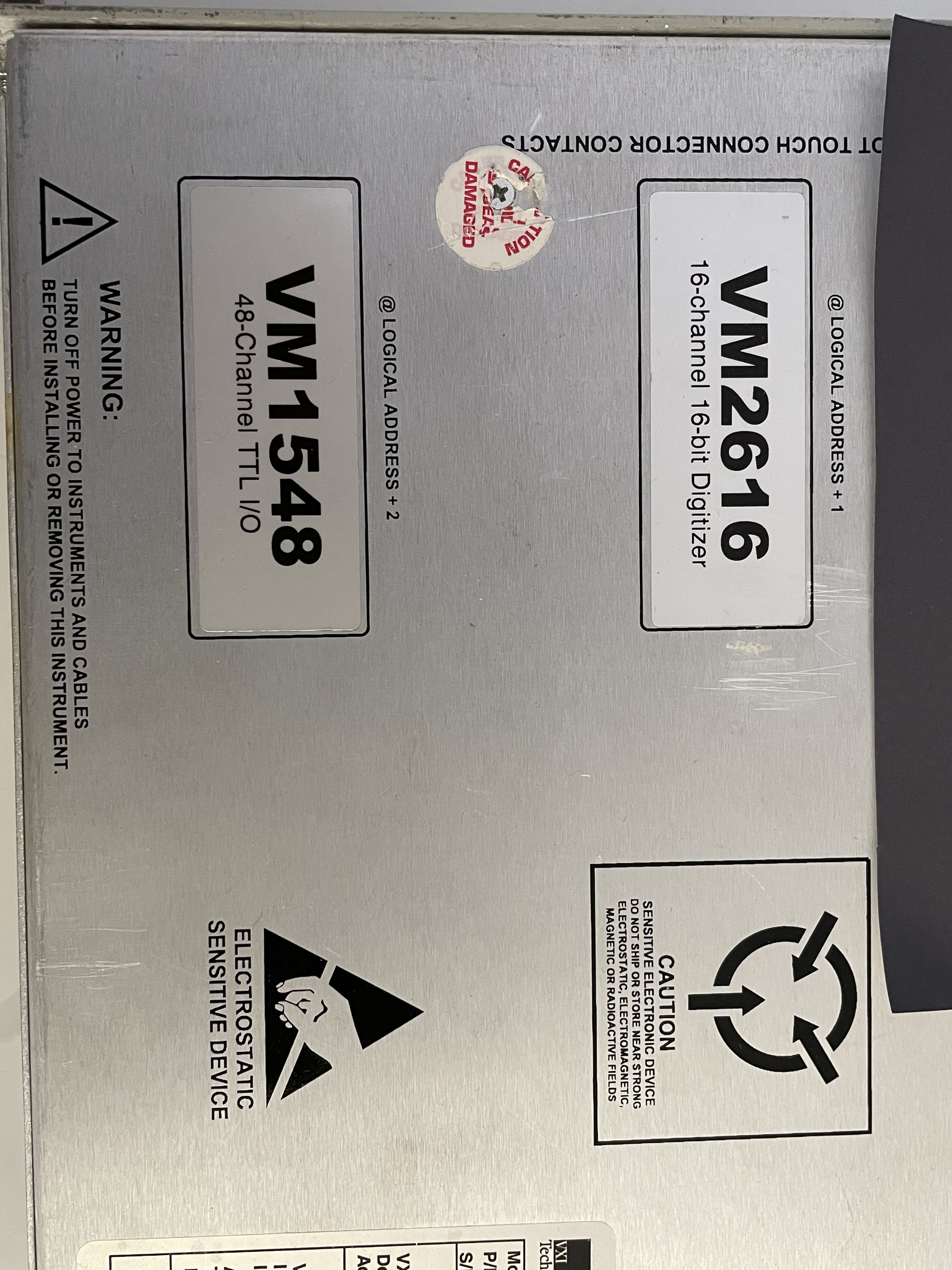

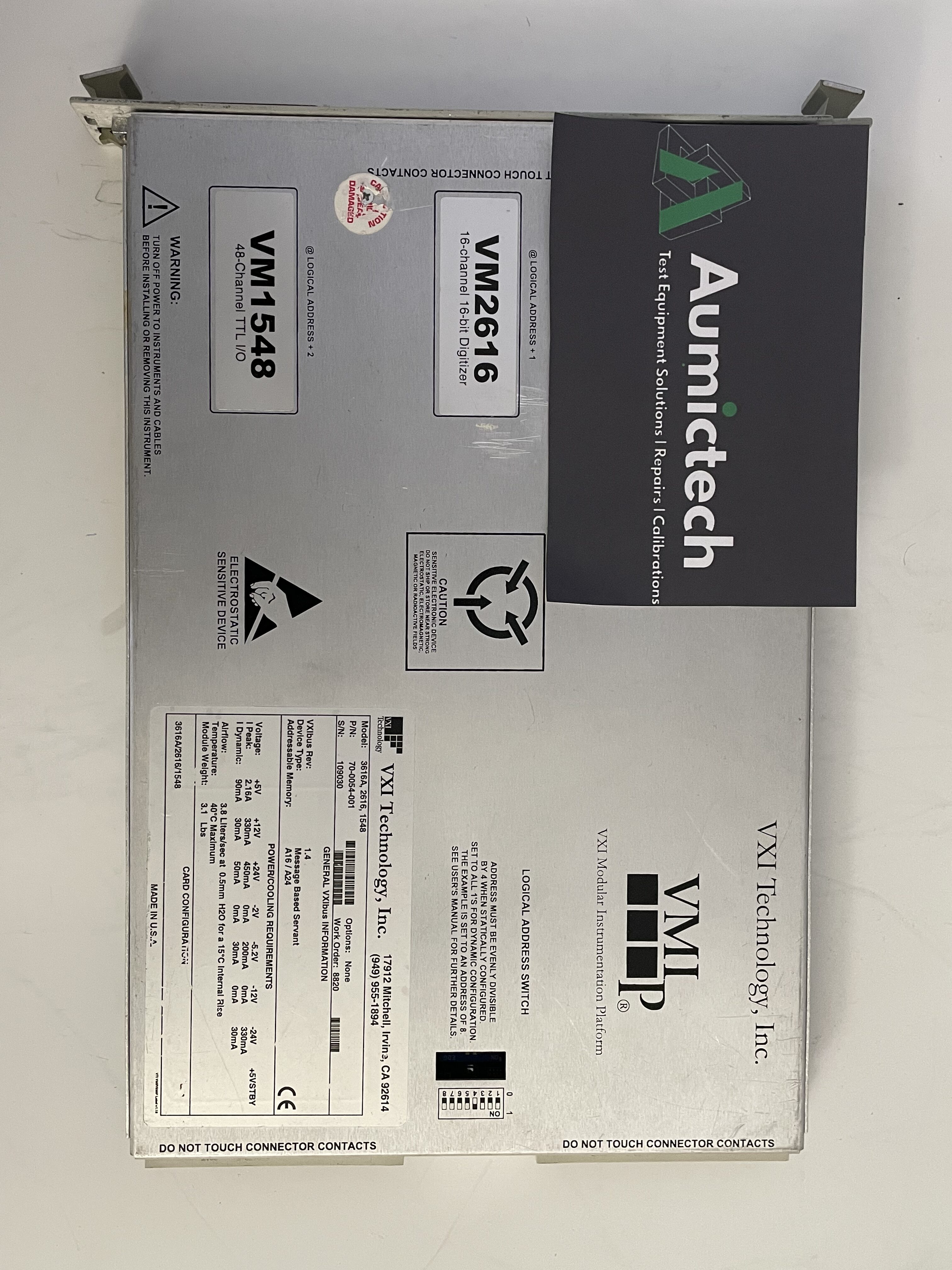

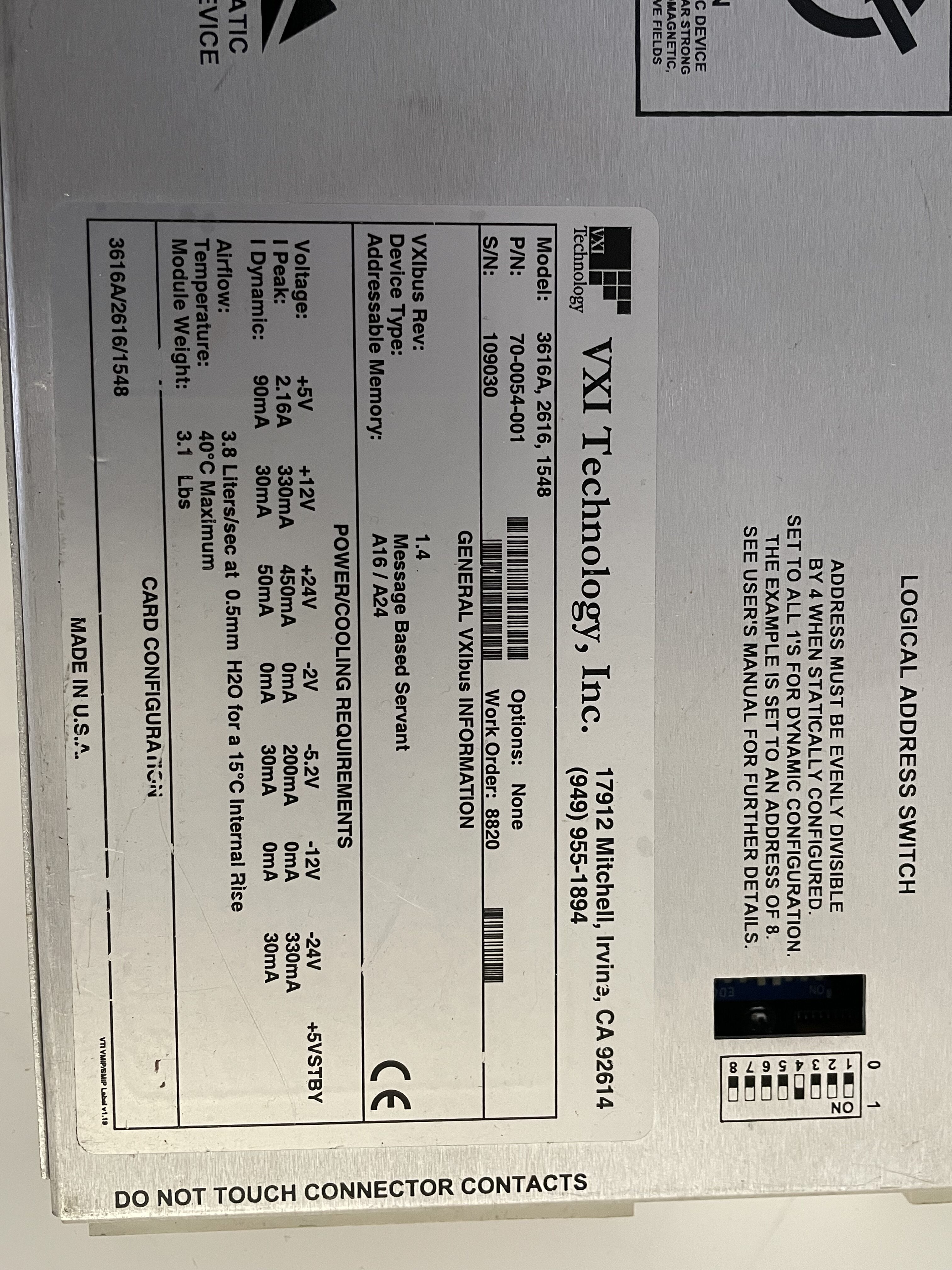

VXI Technology VM2616 + VM1548
16-Channel 16-Bit Digitizer & 48-Channel TTL I/O Module Set
Detailed Description
The VXI Technology VM2616 paired with the VM1548 provides a powerful mixed-signal instrumentation solution for VXI-based automated test systems. This configuration combines high-resolution analog waveform acquisition with high-density digital I/O control, making it well-suited for aerospace, defense, industrial electronics, and production ATE environments.
The VM2616 is a 16-channel, 16-bit digitizer designed for accurate multi-channel analog signal acquisition. It supports synchronous sampling across channels and integrates tightly into VXI trigger architectures, allowing deterministic measurement coordination across complex test racks.
The VM1548 complements the digitizer with 48 channels of TTL-compatible digital I/O, enabling high-channel-count digital stimulus and response monitoring. This makes the module ideal for UUT interface control, logic verification, state monitoring, relay drive control (with external drivers), and programmable digital test sequencing.
Together, this module set provides a scalable mixed-signal platform capable of simultaneous analog measurement and digital system interaction within a standardized VXI instrumentation framework.
VM2616 – 16-Channel 16-Bit Digitizer
Key Features
16 simultaneous analog input channels
16-bit ADC resolution
Programmable input voltage ranges
Synchronous multi-channel sampling
VXI TTL trigger compatibility
Buffered waveform acquisition
Designed for integration into automated test systems
Typical Technical Specifications
Number of Channels: 16 analog input channels
Resolution: 16-bit
Input Coupling: DC
Programmable Input Ranges: ±10 V, ±5 V (model dependent)
Input Impedance: 1 MΩ typical
Sampling Rate: Up to 200 kS/s per channel (aggregate dependent on configuration)
Acquisition Memory: Onboard waveform buffer
Triggering: Internal, external, and VXIbus TTL trigger lines
Interface: VXI backplane
Application Use Cases
Sensor signal acquisition
Low-frequency waveform capture
Power supply ripple measurement
Control system diagnostics
Multi-channel data logging
Closed-loop system verification
VM1548 – 48-Channel TTL Digital I/O Module
Key Features
48 channels of TTL-compatible digital I/O
Configurable input or output per channel/group
Buffered and programmed I/O modes
VXI trigger support
High-density digital interface for ATE
Typical Technical Specifications
Number of Channels: 48 TTL digital lines
Logic Levels: TTL-compatible
Input Voltage Levels:
Logic High ≥ 2.0 V
Logic Low ≤ 0.8 V
Output Drive Capability: TTL drive (consult driver configuration for load limits)
Direction Control: Software-configurable
Data Transfer Modes: Polled I/O and buffered modes
Triggering: VXI TTL trigger bus support
Interface: VXI backplane
Application Use Cases
UUT digital control lines
Status monitoring
Handshake signals
Relay control (with external interface hardware)
Parallel digital test sequencing
Embedded system verification
System Integration
Both modules are designed for installation in a VXI mainframe chassis and operate within the VXIbus architecture. They support synchronized triggering, shared timing, and coordinated test execution across other VXI instrumentation modules.
This configuration is particularly useful in:
Aerospace avionics test benches
Military electronics validation
Industrial control system testing
Semiconductor validation systems
Automated production test racks
Why This Combination Is Valuable
Many VXI test systems require both:
Precision analog waveform capture
High-channel-count digital control
Purchasing these modules together provides a compact, synchronized mixed-signal solution that reduces system complexity while maintaining deterministic timing and VXI backplane integration.
