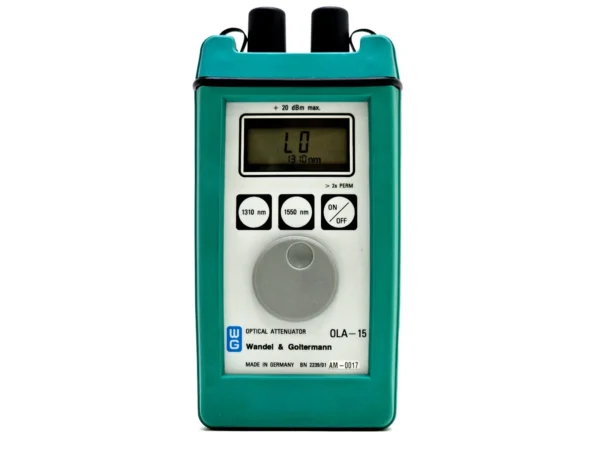

Wandel & Goltermann OLA-15 Optical Attenuator

The Wandel & Goltermann OLA-15 is a handheld optical attenuator that delivers precise, continuously variable attenuation from 3 dB to 60 dB across the C and L bands. Designed for field deployment in fiber optic installation, maintenance, and production environments, it enables line loss simulation, receiver sensitivity characterization, and optical power meter calibration with high return loss performance. The instrument features a large LCD display for real-time attenuation readout, individual calibration certification, and bidirectional operation. Battery or AC-powered, the OLA-15 combines portability with measurement accuracy for systems where back-reflection control is critical.

– Technical Specifications

• Attenuation Range: 3 dB to 60 dB, continuously variable
• Wavelength Range: 1260 nm to 1625 nm; calibrated at 1310 nm and 1550 nm
• Insertion Loss: 40 dB
• Display: Large liquid-crystal display (LCD) for attenuation setting indication
• Calibration: Each instrument individually calibrated for accuracy and reproducibility

– Key Features

• Bidirectional attenuation control
• Compact, lightweight design optimized for field work
• High return loss (> 40 dB) suitable for back-reflection–sensitive measurements

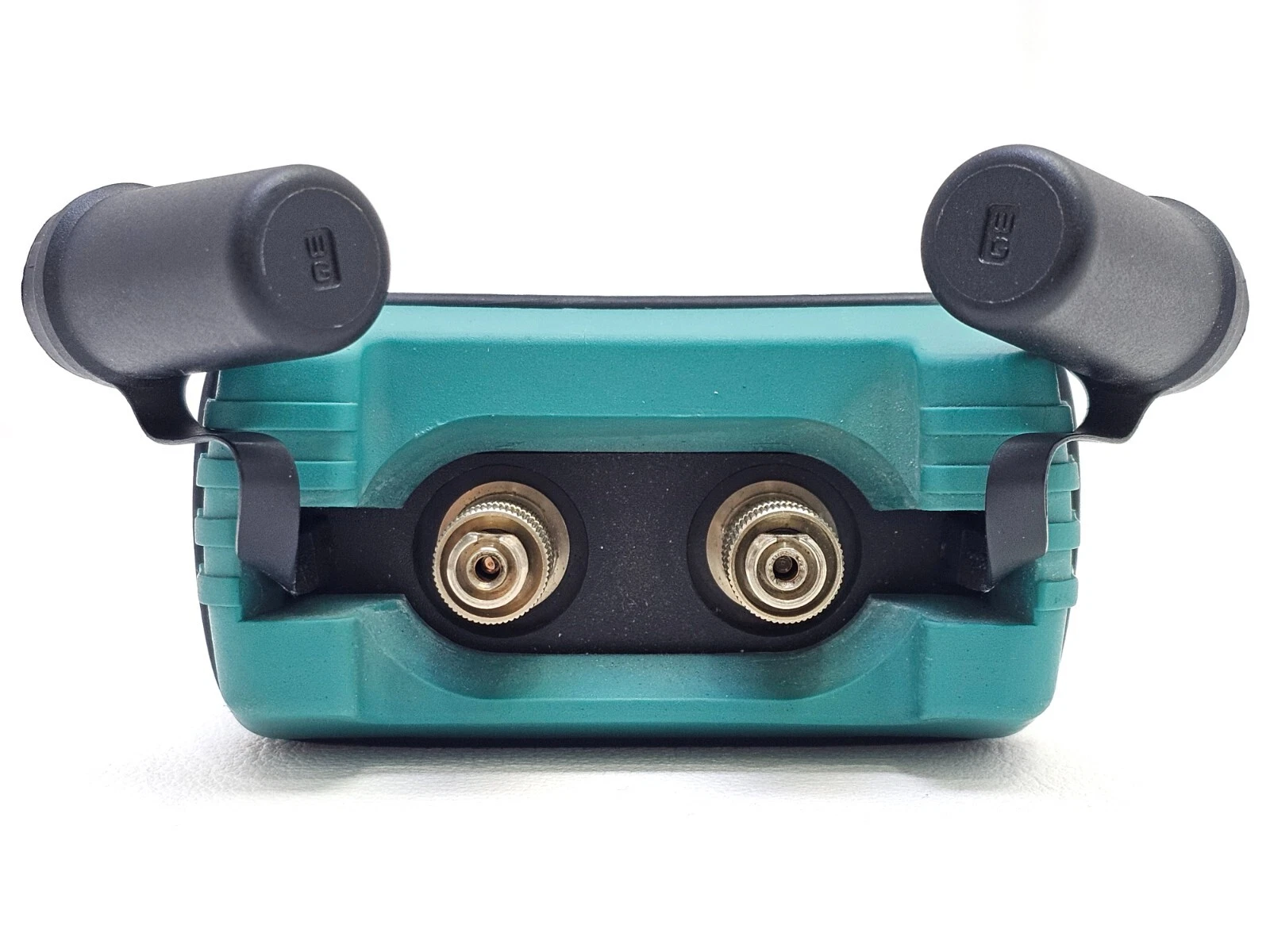

• Universal interchangeable connector adapter system supporting FC, SC, and DIN connectors
• Flexible power: dry batteries (≈45 hours typical), rechargeable NiCd cells (≈15 hours typical), or external AC adapter
• NiCd recharging capability via AC adapter

– Typical Applications

• Bit Error Ratio (BER) testing through line loss simulation
• System margin and receiver sensitivity determination
• Optical power meter calibration
• Back-reflection–critical system measurements

– Compatibility & Integration

Connector support includes FC, SC, and DIN via universal test adapters (Acterna/W&G 2060 Universal Test Adapters available separately). Field kit accessories include carrying strap, connector cleaning tape, MK-1 equipment case, and battery charger.
