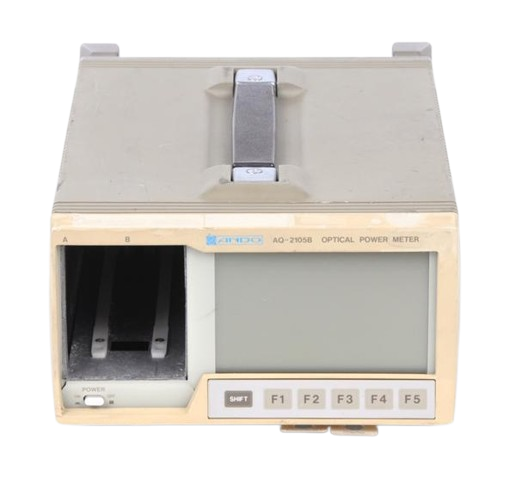

The Yokogawa/Ando AQ-2105 is a 2-channel optical power meter mainframe engineered for precision measurement across optical communications, research, and field deployment. Its modular architecture accepts plug-in OPM units and sensor modules, enabling tailored configurations without custom integration. The instrument operates from standard AC outlets (100-127 V / 220-240 V) or dedicated DC input, making it suitable for laboratory benches and remote field locations alike. Data logging stores up to 1,500 measured values per channel, supporting production monitoring and long-term characterization studies.
– Technical Specifications
• Manufacturer: Yokogawa / Ando
• Model: AQ-2105
• Type: 2-Channel Optical Power Meter Mainframe
• Wavelength Range (with AQ-2715 sensor module): 750–1700 nm
• Power Measurement Range (with AQ-2715 sensor module, at 1300 nm): −90 to 0 dBm
• Memory Capacity: 1,500 measured values per channel
• Optical Interface: FC/PC (with compatible sensor modules)
• AC Power Input: 100–127 V / 220–240 V
• DC Power Input: −10.2 to −13.8 V DC at 1.5 A
• Remote Control: GPIB interface
• Analog Outputs: Two analog output channels
• Dimensions (with AQ-2109 OPM Unit): 14 × 8.25 × 5 inches
• Weight (with AQ-2109 OPM Unit): 9.7 lbs; mainframe only: 20 lbs
– Key Features
• Plug-in modularity supports multiple sensor configurations and OPM units
• Dual AC/DC power operation for laboratory and field work
• GPIB remote control for automated test sequences
• Dual analog outputs for real-time monitoring and data acquisition
• Integrated data storage eliminates manual logging
– Typical Applications
• Optical communications R&D and manufacturing
• Fiber optic component characterization
• Network installation and maintenance
• Field construction and commissioning work
– Compatibility & Integration
The AQ-2105 accommodates plug-in units including the AQ-2109 OPM Unit and AQ-2715 Power Sensor Module. Connector adapters and bare fiber adapters are available to extend measurement flexibility across diverse test configurations.
