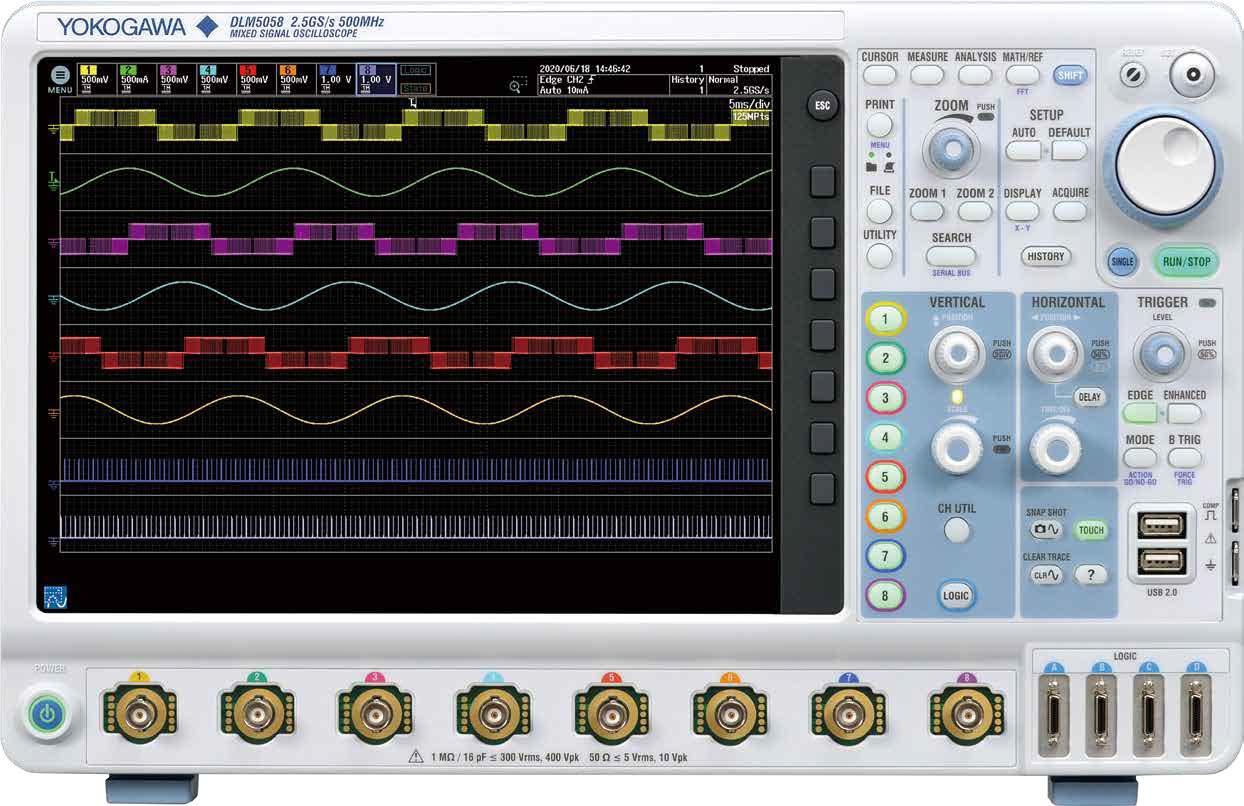

Yokogawa DLM5034 Mixed Signal Oscilloscope: 4-Channel, 350 MHz

The Yokogawa DLM5034 is a 4-channel mixed-signal oscilloscope that merges digital oscilloscope and logic analyzer capabilities into a single instrument. It simultaneously captures analog signals across 4 channels and digital logic states across 16 or 32 bits, enabling comprehensive debugging of complex electronic systems. With 350 MHz bandwidth, 2.5 GS/s sample rate, and up to 1 Gpoint optional memory, the DLM5034 delivers extended capture windows and precise signal characterization. The instrument features 12-bit vertical resolution (16-bit in High Resolution Mode), 14 configurable low-pass filters per channel, and vertical sensitivity down to 500 μV/div on 1 MΩ inputs. Vertical axis resolution reaches 12-bit maximum standard configuration, expandable to 16-bit in specialized modes.

– Technical Specifications

• Bandwidth: 350 MHz
• Analog Channels: 4
• Logic Channels: 16 bits (standard) or 32 bits (optional)
• Sample Rate: 2.5 GS/s maximum
• A/D Resolution: 8-bit
• Vertical Resolution: 12-bit standard, 16-bit in High Resolution Mode
• Vertical Sensitivity: 500 μV/div to 10 V/div (1 MΩ); 500 μV/div to 1 V/div (50 Ω)
• Input Coupling: AC 1MΩ, DC 1MΩ, DC 50Ω
• Input Impedance: 1 MΩ ±1.0%, 50 Ω ±1.0%
• Maximum Input Voltage: 300 Vrms or 400 Vpeak (1 MΩ); 5 Vrms or 10 Vpeak (50 Ω)
• Timebase: 1 ns/div to 500 s/div
• Low-Pass Filters: 14 per channel, 8 kHz to 200 MHz cutoff
• Waveform Memory: 50 Mpoints standard; up to 500 Mpoints or 1 Gpoint optional
• History Memory: 100,000 waveforms

– Key Features

• Edge, pulse width, timeout, pattern, runt, rise/fall time, interval, and window triggering
• Optional serial protocol triggers: UART, I2C, SPI, CAN, CAN FD, LIN, FlexRay, SENT, CXPI, PSI5
• 29 automated waveform parameter measurements with simultaneous 30-measurement capability
• Simultaneous 4-bus serial analysis at different speeds with dedicated logic decoding
• Auto setup function for signal analysis and bus parameter optimization
• Math channels and optional user-defined math functions
• Extended search across long memory captures

– Typical Applications

• Power semiconductor circuit debugging and characterization
• Electric vehicle motor control verification
• Mechatronics system development and validation
• Embedded systems protocol analysis
• High-speed digital and analog signal simultaneous observation

– Compatibility & Integration

Optional power supply analysis module available. Logic inputs support decoding of I2C, SPI, UART, and SENT protocols.
