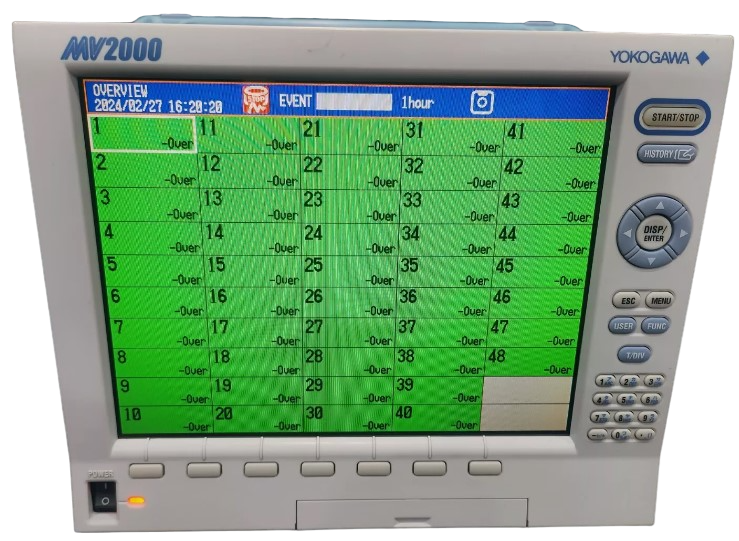

Yokogawa MV2048 Portable Paperless Recorder, 48 Ch, 1 S (Fast sampling mode: 125 ms)

The Yokogawa MV2048 is a 48-channel portable paperless recorder engineered for multi-parameter data acquisition across industrial and laboratory environments. It delivers simultaneous sampling at 125 ms intervals in fast mode, with configurable standard sampling from 1 s to 10 h/div. The instrument accepts universal inputs—DC voltage, thermocouple, RTD, and digital signals—with channel isolation on DC and thermocouple inputs. Data logs to 200 MB internal flash memory or external CompactFlash and USB media in binary or text formats.

– Technical Specifications

• Model: MV2048
• Input Channels: 48
• Fast Sampling Interval: 125 ms
• Standard Sampling Intervals: 1 s, 2 s, 5 s, 15 s, 30 s, 1 min, 2 min, 5 min, 10 min, 15 min, 20 min, 30 min, 1 h, 2 h, 4 h, 10 h/div
• A/D Integration Time: 16.7 ms or greater (standard); 1.67 ms (high-speed mode)
• Thermocouple Accuracy (Types R, S): ±(0.2% of reading + 4 °C)
• Internal Memory: 200 MB flash
• External Storage: CompactFlash card, USB memory
• Input Types: DC voltage, thermocouple, RTD, digital (channel-isolated on DC and thermocouple)
• Power Supply: 90–132 VAC or 180–250 VAC, 50/60 Hz ±1%
• Withstand Voltage: 1000 VAC
• Dimensions (MV2000 Series): 307 mm W × 273 mm H × 260 mm D
• Construction: Lightweight aluminum case

– Key Features

• Multi-range universal inputs eliminate pre-signal conditioning.
• Dual sampling modes optimize between resolution and logging duration.
• Ethernet 10BASE-T with TCP/IP stack supports remote monitoring, file transfer, and time synchronization via SNTP.
• Web server displays live data and waveforms via standard browsers.
• Modbus client/server capability integrates with plant automation networks.
• Alarm-triggered email transmission for event notification.
• RS-232 and RS-422/485 serial interfaces for legacy system integration.
• USB keyboard and flash memory device support.

– Typical Applications

Thermocouple and RTD monitoring in furnace and thermal process control; multi-channel DC voltage data logging in power distribution systems; regulatory compliance documentation in pharmaceutical and food manufacturing; transient event capture during equipment commissioning and troubleshooting.

– Compatibility & Integration

Ethernet 10BASE-T with FTP, HTTP, SMTP, DHCP, and Modbus protocols. Serial RS-232, RS-422/485 via optional interface card. USB connectivity for external storage and input devices.
