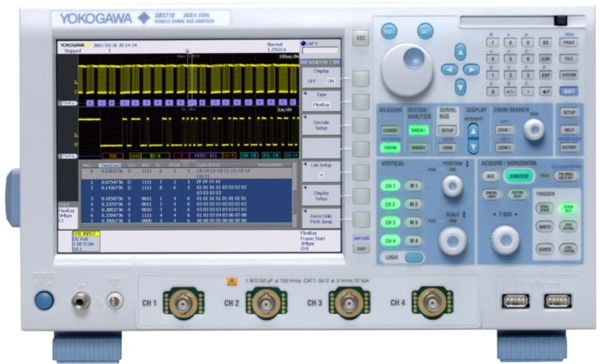

Yokogawa SB5710 Serial Data Analyzer

The Yokogawa SB5710 Serial Data Analyzer captures, displays, and analyzes serial communication data across automotive and complex electronic systems. It combines 4 analog channels with 32-bit logic analysis, 1.0 GHz bandwidth, and up to 2.5 GS/s sampling to decode FlexRay, CAN, LIN, UART, I²C, and SPI protocols. The 6.25 MW memory supports segmented recording up to 2000 divisions, enabling extended capture sessions and detailed waveform inspection.

– Technical Specifications

• Model: SB5710 (701361)
• Bandwidth: 1.0 GHz
• Sample Rate: Up to 2.5 GS/s
• Memory Depth: 6.25 MW (segmentable to 2000 divisions)
• Analog Channels: 4
• Logic Channels: 32-bit
• Supported Protocols: FlexRay, CAN, LIN, UART, I²C, SPI
• Interfaces: IEEE 488.2 (GPIB), USB, Ethernet

– Key Features

• Protocol analysis with symbolic triggering and database-driven decoding (DBC for CAN, FIBEX for FlexRay)
• FlexRay physical layer conformance testing including eye-diagram analysis, mask testing, and electrical parameter characterization
• CAN bus symbolic analysis with trend display and error triggering
• Parallel bus measurement and analysis up to 32 bits wide
• Advanced triggering across multiple bus types and analog channels with dedicated error triggers
• Electrical characteristics testing for delay times, rise/fall times, and driver parameters
• History replay of captured data
• Auto-setup and protocol-optimized user interface menus
• Optional power supply analysis capability

– Typical Applications

Automotive embedded systems validation, FlexRay physical layer conformance verification, multi-protocol bus debugging, microprocessor parallel interface analysis, and serial communication troubleshooting in high-speed digital designs.

– Compatibility & Integration

Remote control and integration via GPIB, USB, and Ethernet connectivity enables automated test sequences and data export to analysis tools.
