Yokogawa SL1400 ScopeCorder LITE

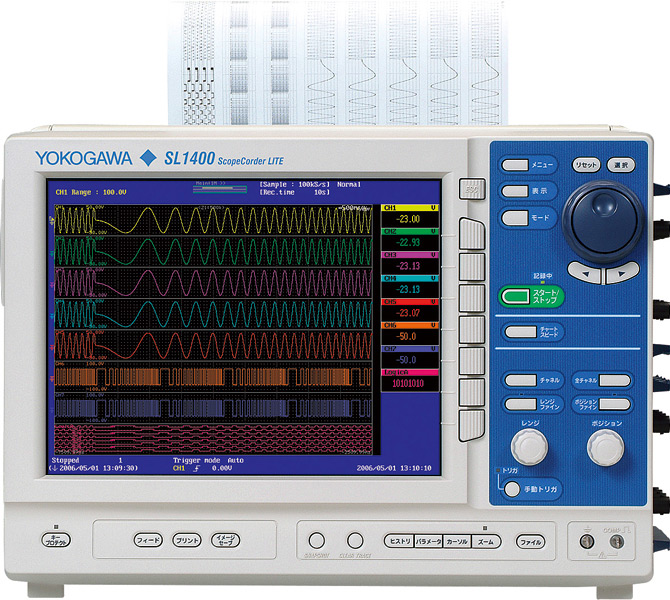

The Yokogawa SL1400 ScopeCorder LITE is a hybrid data acquisition system that merges oscilloscope and data logger capabilities into a single platform. It captures and analyzes electrical and physical phenomena across up to 16 analog and 16 logic channels, supporting sampling rates to 10 MS/s and record lengths up to 50 MW total. Field testing, R&D, and quality control applications benefit from its extended time-axis flexibility—spanning 100 µs to 30 days—and ±0.005% timing accuracy.

– Technical Specifications

• Analog/Logic Channels: 16 analog + 16 logic channels
• Sampling Rate: Up to 10 MS/s (module dependent); 1 MS/s 16-Bit isolation modules also available
• Record Length: Standard 2.5 MW/CH; up to 50 MW total capacity
• Acquisition Period: 100 µs to 30 days
• Time Axis Accuracy: ±0.005%
• Time Axis Range: 100 µsec to 5 sec, 10 sec to 60 min, 100–300 min, up to 120 h, and 10–30 days
• Acquisition Modes: Normal, Envelope, Averaging, Box average
• Display: 10.4-inch color TFT (800 × 600 SVGA)
• Built-in Printer: A4 width (210 mm), 20 m roll capacity
• Data Backup: ~150 hours with four AA batteries

– Key Features

• Modular input architecture supports 10 MS/s 12-Bit (isolation/non-isolation), 1 MS/s 16-Bit isolation, 100 kS/s 16-Bit high-voltage, temperature, acceleration, and strain modules
• Probe power terminal accommodates up to 4 probes; compatible with 30 A and 150 A current probes (max. 2 simultaneous)
• External trigger (TTL) and external clock input to 1 MHz
• USB peripheral interface for mouse operation

– Interfaces & Integration

• Computer Connectivity: GP-IB, RS-232 serial, USB, and optional Ethernet
• Ethernet Capabilities: TCP/IP, FTP client/server, LPR, SMTP, Web server (Internet Explorer remote operation)
• PC Software: Wirepuller for remote operation

– Typical Applications

Field testing, research and development, quality control, electrical/physical phenomenon capture and analysis.
