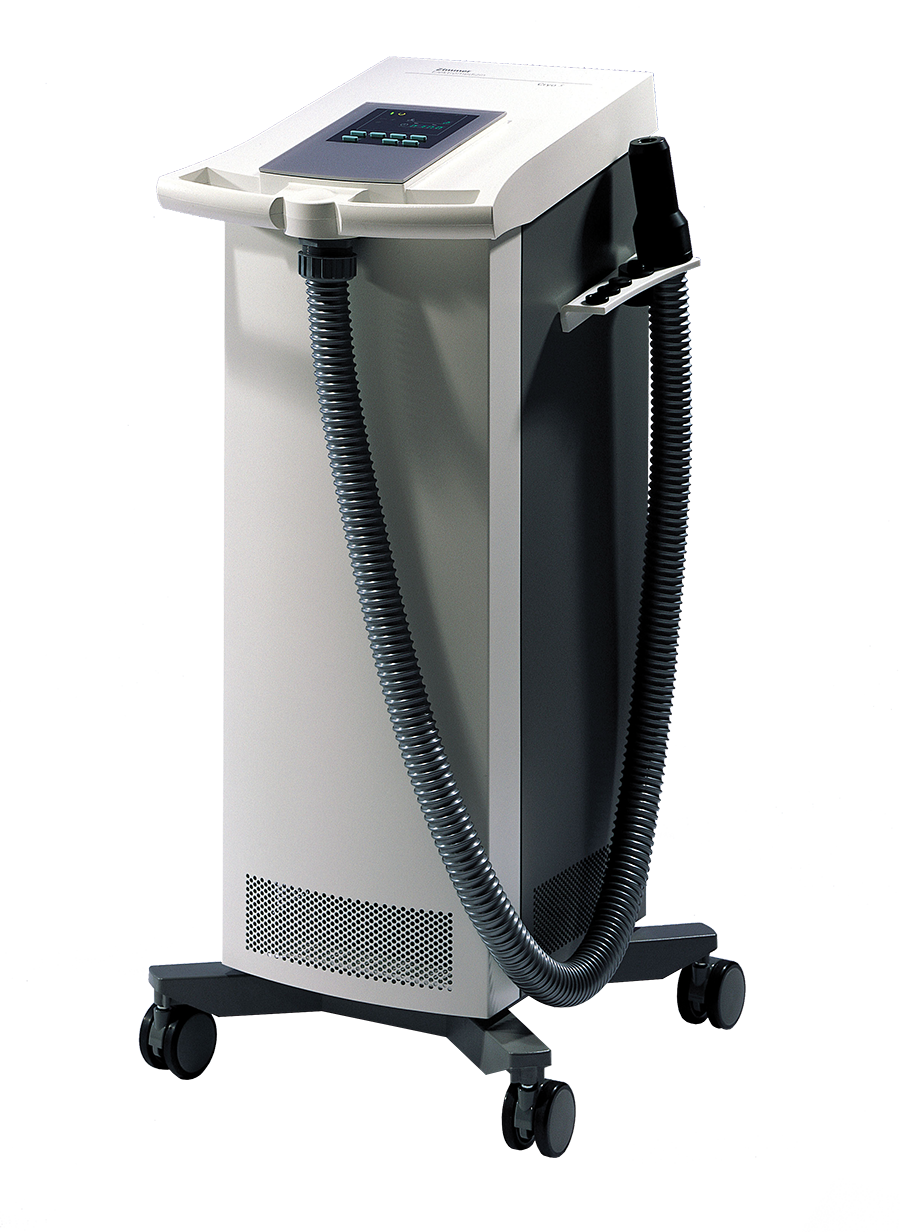

Zimmer Cryo 5

The Zimmer Cryo 5 is a cryotherapy device that delivers continuous cold air cooling to minimize pain and thermal injury during laser and dermatological procedures. It provides precise temperature control and consistent airflow without consumables, engineered for treatment before, during, and after procedures.

– Technical Specifications

Cooling Performance
• Treatment temperature: −30°C to −35°C (−22°F to −31°F)
• Maximum air volume: 1000 l/min
• Adjustable airflow: 6 fan speed levels (Level 1: 300 l/min; Level 6: 700 l/min)
• Treatment tube length: 180 cm (71 inches)

Electrical
• Operating voltage: 120 V, 60 Hz
• Maximum power during therapy: 1 kW (1.4 kVA)
• Standby power: 260 W/h
• Thermal-magnetic circuit breaker: 12 A or 14 A
• Protection class: Class I, Type B (IEC 601-1)
• Regulatory classification: Class IIa (MDD/MPG)

Physical Dimensions
• Height: 970 mm (38 inches)
• Width: 330 mm (13 inches)
• Length: 460 mm (18 inches)
• Base footprint: 470 mm × 510 mm
• Height with castors: 1080 mm (43 inches)
• Weight: 55 kg (121 lbs)

Maintenance
• Air filter: Metallic filter, weekly vacuuming required
• Defrost water container: 2 liter capacity

– Key Features

• One-touch operation with user-friendly control panel
• Adjustable therapy time with modifiable presets (stored until power-off)
• Digital displays: therapy time, airflow level indicator, on/off status, standby mode, service/warning indicators
• Airflow regulation buttons with real-time level indication
• Filter maintenance and water container emptying alerts
• No consumables required (no gels or contact tips)

– Typical Applications

• Laser procedures with integrated skin protection
• Dermatological treatments
• Continuous cooling support throughout procedure duration

– Compatibility & Integration

• Single-phase AC supply: 120 V, 60 Hz
• Mobile operation via castors
• Storage conditions: −39°C to +70°C ambient; 10% to 100% relative humidity
