Signal Generators

Signal Generators

Signal generators are fundamental test instruments used to produce controlled electrical and radio frequency signals for testing, measurement, and validation of electronic and RF systems. They serve as the known reference source in a test environment, allowing engineers to stimulate devices and systems under precise and repeatable conditions. At Aumictech, signal generators are positioned as core test instruments, because the accuracy and stability of the generated signal directly determine the reliability of test results.

In professional environments, signal generators are not simple tone sources. They are precision instruments capable of producing signals with tightly controlled frequency, amplitude, modulation, and spectral characteristics. Any instability or inaccuracy at the source propagates through the entire test setup and can compromise measurements, diagnostics, and compliance evaluations.

Role of Signal Generators in Test and Measurement Systems

Signal generators provide a known input signal that is used to evaluate the behavior of receivers, amplifiers, filters, transceivers, and complete communication systems. By injecting a controlled signal, engineers can measure gain, sensitivity, selectivity, linearity, and noise performance.

In RF and microwave testing, signal generators are used to simulate real-world operating conditions, including continuous wave signals, modulated carriers, and complex waveforms. In production environments, they enable repeatable functional testing and performance verification across large volumes of devices.

Signal generators are also critical in calibration workflows, where they establish reference frequencies and amplitudes used to validate other instruments and signal paths.

Key Performance Characteristics

Frequency accuracy and stability define how closely the generated signal matches the intended frequency over time and environmental changes. High stability is essential for narrowband measurements and long-duration testing.

Amplitude accuracy affects power and gain measurements. Precise level control ensures consistent stimulus and reliable comparison between test runs.

Phase noise performance is critical in RF and microwave applications, especially when testing receivers, oscillators, and systems using advanced modulation schemes. Excess phase noise can mask true device performance.

Spectral purity determines the absence of unwanted spurs and harmonics. Clean output spectra are required for meaningful measurements and compliance testing.

Modulation capability defines the ability to generate real-world signal formats, including amplitude, frequency, phase, and digital modulation. Accurate modulation is essential for modern communication system validation.

Output level range and resolution affect how well the generator can stimulate devices across low-level sensitivity tests and higher-power drive conditions.

Types of Signal Generators

RF signal generators produce signals across radio frequency and microwave bands and are widely used in wireless, radar, and communication system testing.

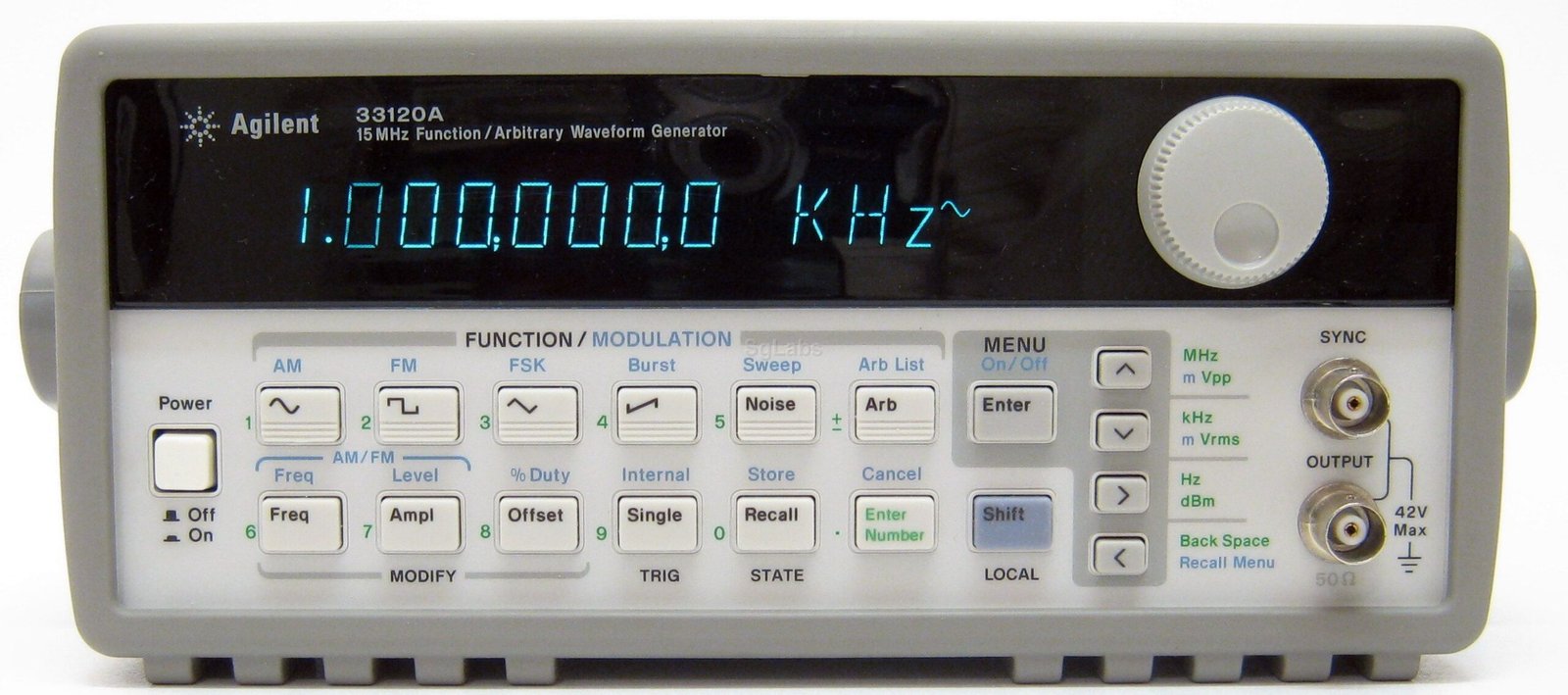

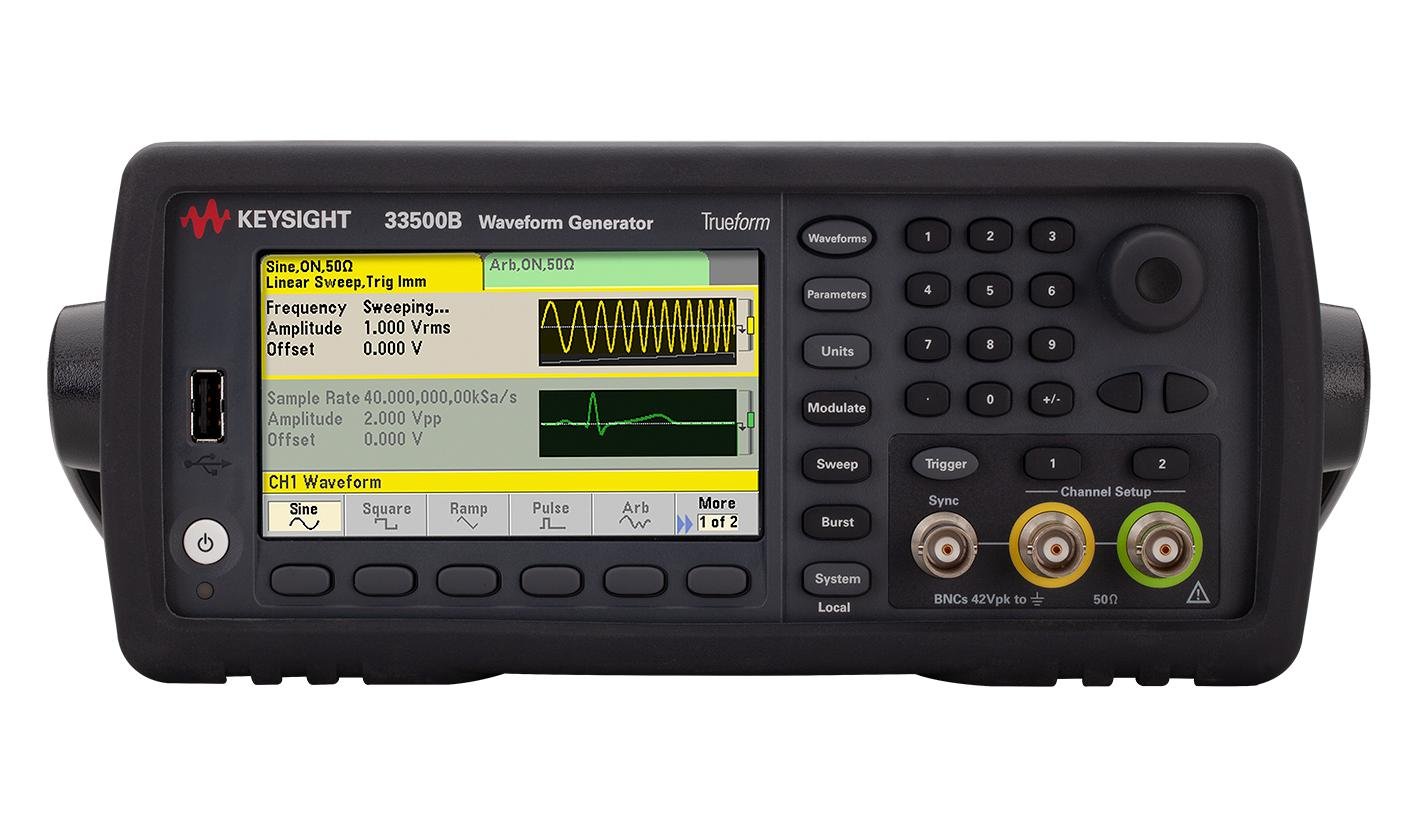

Function and arbitrary waveform generators produce lower-frequency signals and complex waveforms used in electronic design, debugging, and system validation.

Vector signal generators support advanced digital modulation and are used extensively in modern wireless and aerospace applications.

Pulse generators produce precisely timed signals for testing timing-sensitive circuits, radar systems, and digital electronics.

Audio and low-frequency signal generators support analog and mixed-signal testing where precision waveform control is required.

Design and Stability Considerations

Signal generators are built around high-quality oscillators, frequency synthesis architectures, and output conditioning stages. Oscillator stability and reference accuracy play a central role in overall performance.

Thermal management is important, as temperature variation can affect frequency drift, amplitude stability, and phase noise.

Internal filtering and shielding are used to suppress spurious signals and maintain clean output spectra.

User interface design and control flexibility influence how efficiently signal generators can be integrated into automated test systems and complex workflows.

Applications Across Industries

Signal generators are used across telecommunications, aerospace and defense, semiconductor manufacturing, research laboratories, and industrial electronics. They support receiver testing, transmitter validation, component characterization, and system-level verification.

Calibration laboratories rely on signal generators as reference sources for frequency and amplitude verification. Production environments use them to standardize test conditions and ensure consistent device performance.

Field engineers use portable signal generators for troubleshooting, system validation, and on-site diagnostics.
